Fuel Tank ASSY (FA20)
›
Exploded View
Exploded View

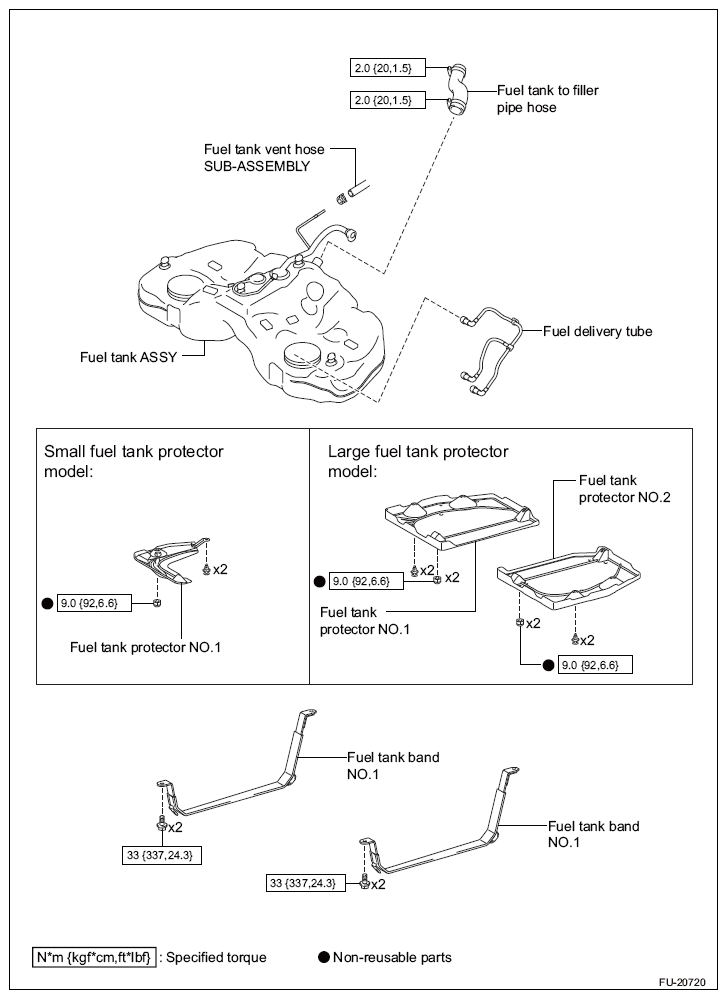

Fig 1: Fuel Tank Assembly (FA20) Components With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

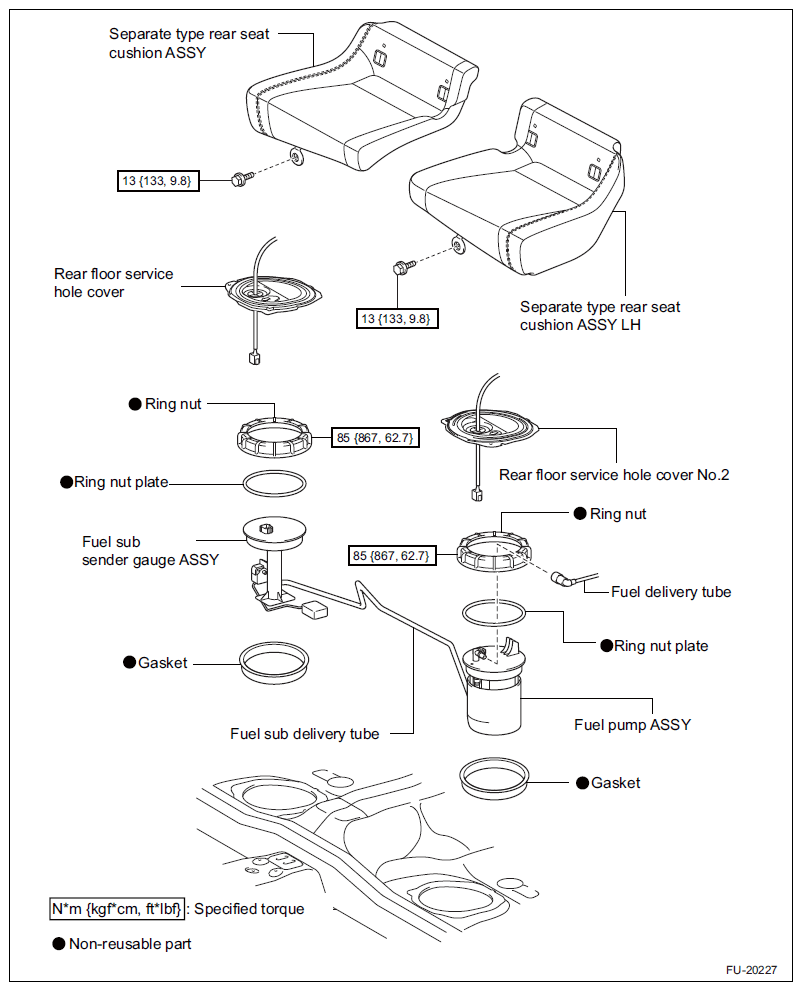

Fig 2: Fuel Tank Assembly (FA20) Components With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
