Injector ASSY (FA20/Direct Fuel Injection)
›
Exploded View
Exploded View

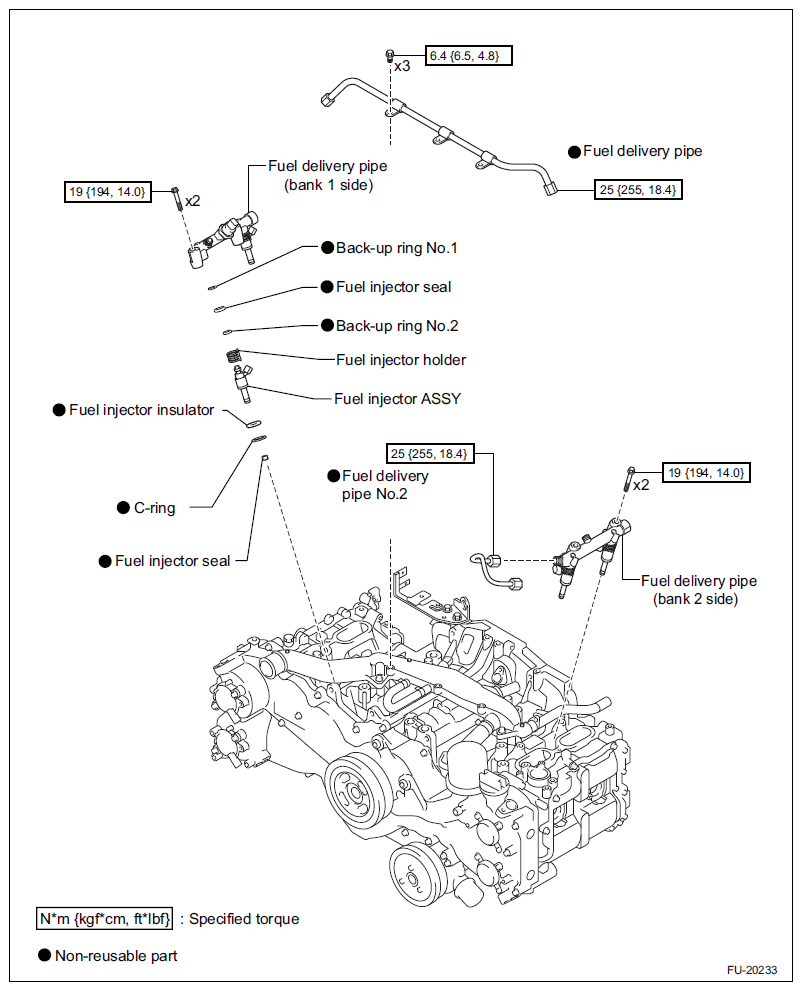

Fig 1: Injector Assembly (FA20/Direct Fuel Injection) Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
