Exploded View
Exploded View

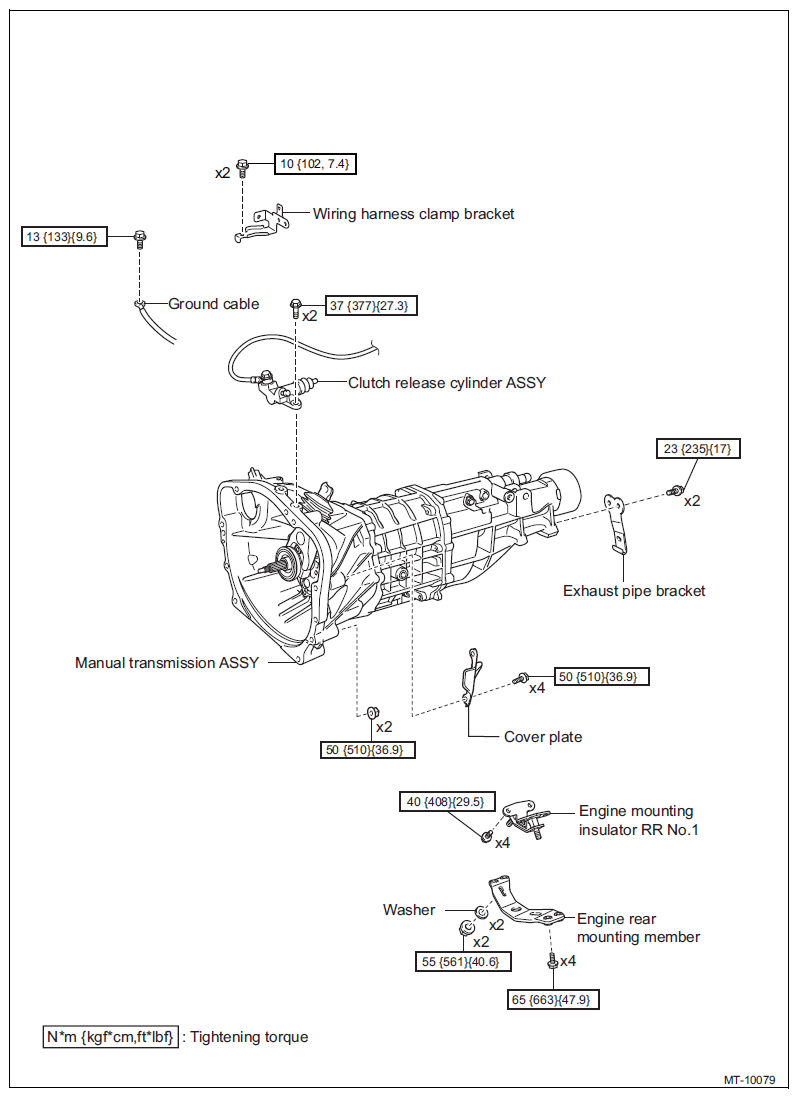

Fig 1: Manual Transmission Assembly Components With Torque Specification (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Manual Transmission Assembly Components With Torque Specification (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Manual Transmission Assembly Components With Torque Specification (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
