Abs Wheel Speed Sensor

• Impreza model

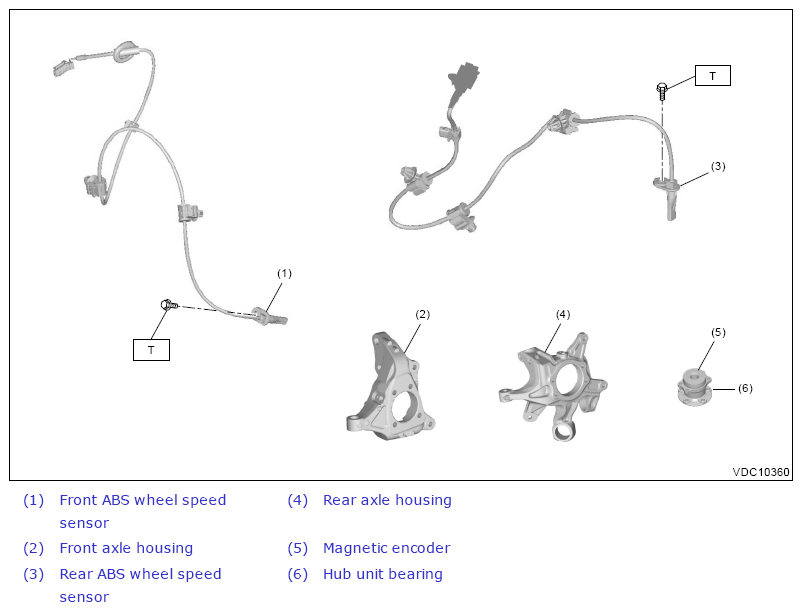

Fig 1: ABS Wheel Speed Sensor Components (With Torque Specifications) - Impreza Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

• Except for Impreza model

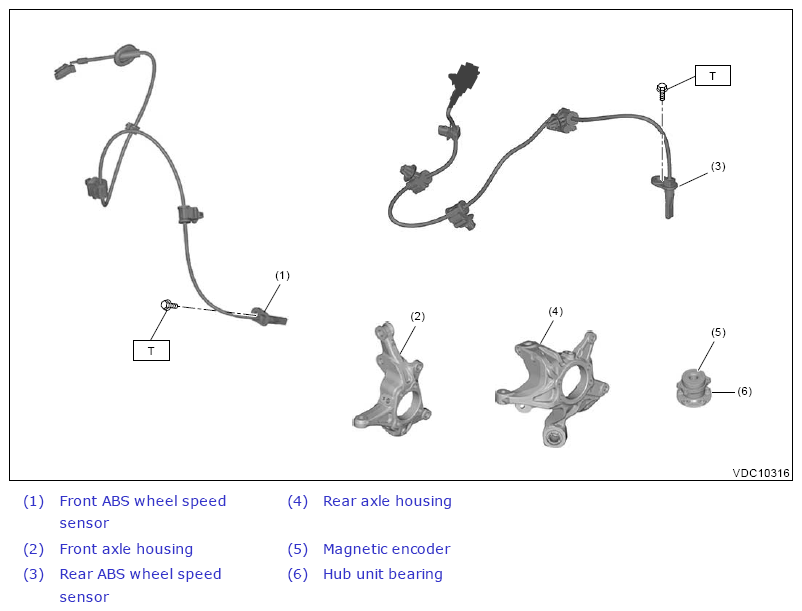

Fig 2: ABS Wheel Speed Sensor Components (With Torque Specifications) - Except For Impreza Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
