Oil Pan

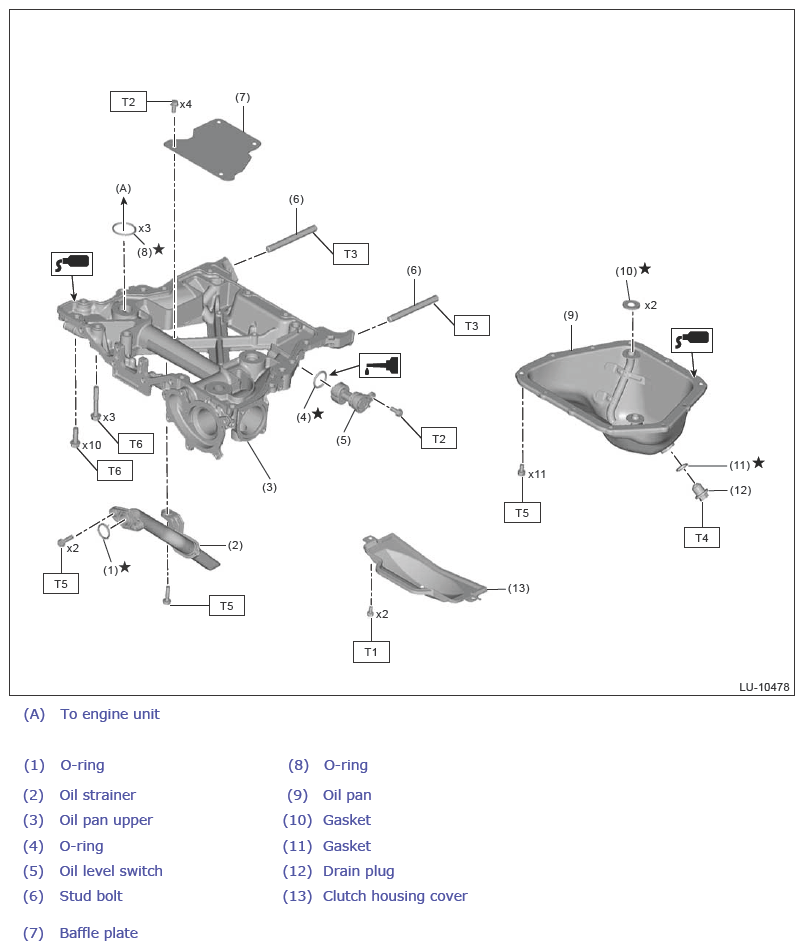

- Except for hybrid model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 6.4 (0.7, 4.7)
T3: 10 (1.0, 7.4)
T4: 41.7 (4.3, 30.8)
T5 : Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .
T6 : Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .

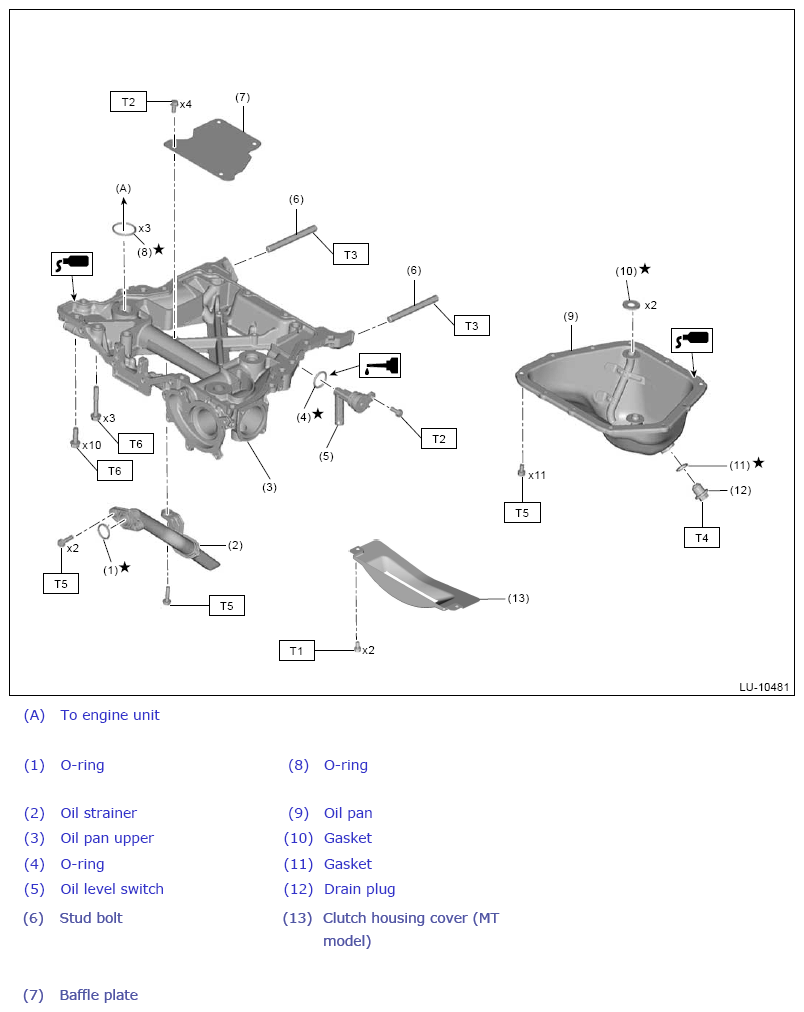

- Hybrid model
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5.6 (0.6, 4.1)
T2: 6.4 (0.7, 4.7)
T3: 10 (1.0, 7.4)
T4: 41.7 (4.3, 30.8)
T5 : Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .
T6 : Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .
