Cylinder Head

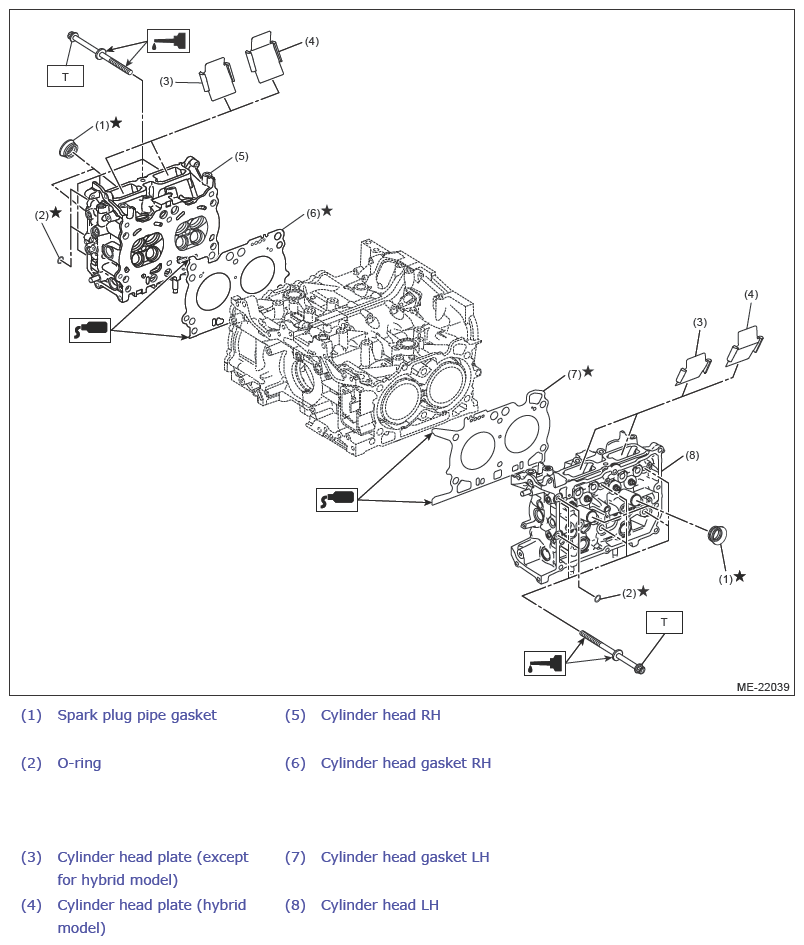

Fig 1: Cylinder Head Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Refer to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER HEAD>INSTALLATION .
