Preparation For Overhaul: Procedure

After engine has been removed from the vehicle, mount the engine to the engine stand while being careful of the following.
1. When mounting the engine stand, follow the instructions of engine stand used.
2. When disassembling the cylinder block, remove the following parts first, and then mount the engine stand.
  1. Remove the crankshaft position sensor plate together with the drive plate. (CVT model (except for hybrid model))
    Impreza model:

    Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>DRIVE PLATE>REMOVAL .

    Cross trek model:

    Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 CROSS TREK)>DRIVE PLATE>REMOVAL .
  2. Remove the crankshaft position sensor plate together with the flywheel. (MT model and hybrid model)
    MT model:

    Refer to CLUTCH SYSTEM>Flywheel>REMOVAL .

    Hybrid model:

    Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>FLYWHEEL>REMOVAL .

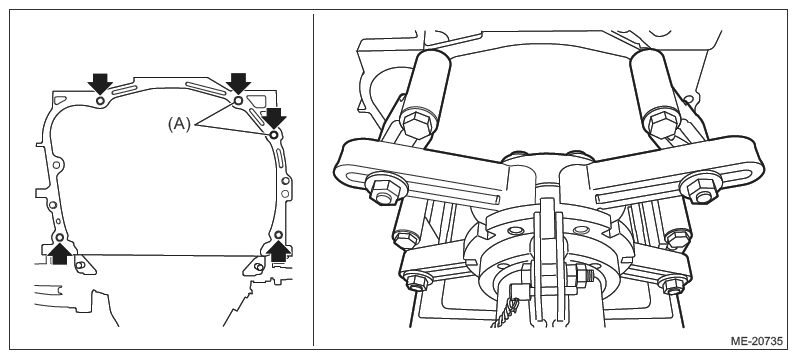

3. Mount the engine stand using the points shown by the arrows in the figure.
  CAUTION: Be sure to mount the engine stand at four points. Otherwise, the engine damage may occur.
  NOTE:
  - For points (A), either of them can be used for mounting the engine stand.
  - The engine stand shown in the figure is just for reference.
Courtesy of SUBARU OF AMERICA, INC.
In this information, the procedures described under each index are all related to each other and described in order. The procedure for overhauling of the engine will be completed when you go through all steps in the process.
Therefore, to conduct the particular procedure, you need to go back and conduct the procedure described previously in order to do that particular procedure.
