Auto Headlight Beam Leveler Control Module: Removal

CAUTION: Before handling the airbag system components, refer to: AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the cover assembly - instrument panel LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the auto headlight beam leveler Control Module.
    1. Remove the connector and harness clip.
    2. Remove the bolts, and pull out the auto headlight beam leveler Control Module.

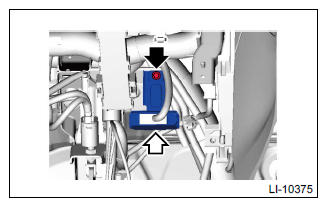

      • MT model
        G11246005Courtesy of SUBARU OF AMERICA, INC.
      • CVT model
        G13226442Courtesy of SUBARU OF AMERICA, INC.
