Ignition Key Lock: Replacement
CAUTION:
- Before handling the airbag system components, refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Do not allow harness and connectors to interfere or get tangled up with other parts.
- If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC (VDC) Centering Mode" of the VDC. Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
- Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.NOTE: For the hybrid model, disconnect the battery negative terminal.
- Remove the cover assembly - instrument panel LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
- Remove the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
- Remove the column assembly - steering. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
- Remove the ignition key lock.
- Install the ignition key lock.

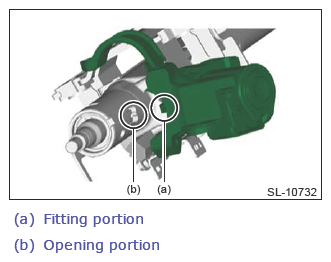

- Secure the ignition key lock to the column assembly - steering.CAUTION: When installing the ignition key lock, confirm that the fitting portion of the ignition key lock is properly engaged with the opening portion of the column shaft.
- Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
- Secure the ignition key lock to the column assembly - steering.
- Install the column assembly - steering. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
- Install the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
- Install the cover assembly - instrument panel LWR driver.
- Connect the ground terminal to 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.NOTE: For the hybrid model, connect the battery negative terminal.
