Chain Cover

• Except for hybrid model

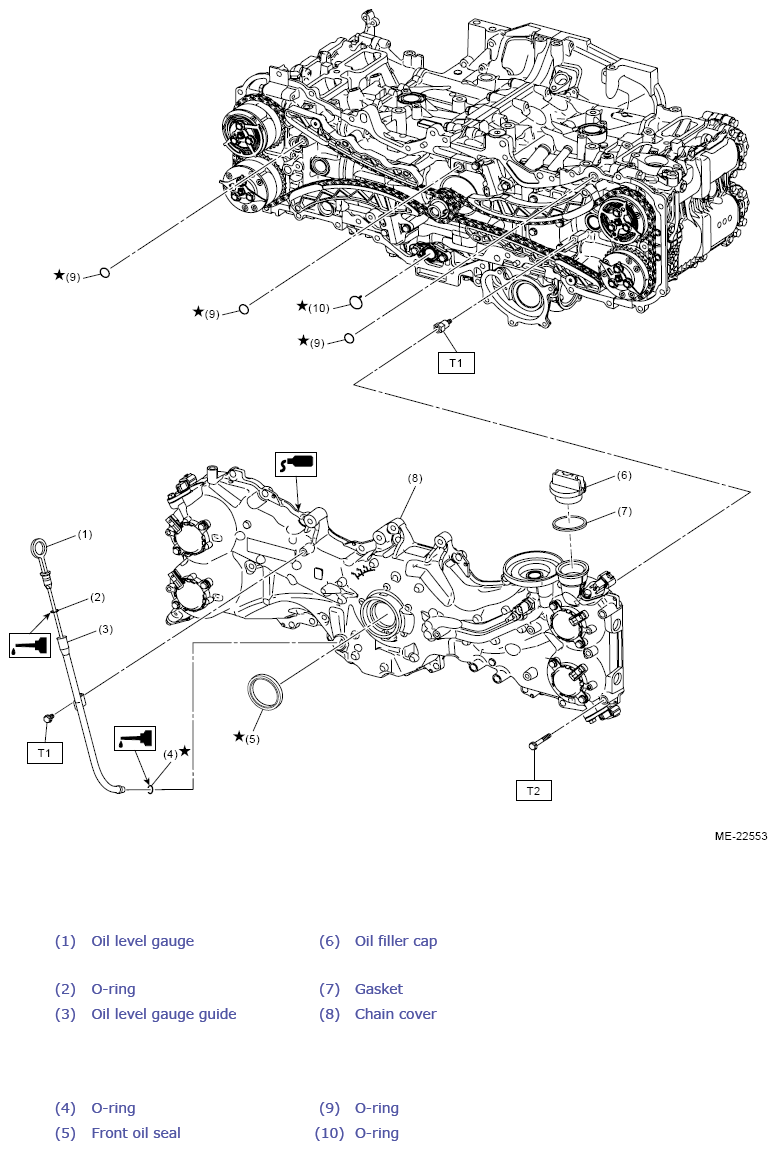

  Fig 1: Chain Cover Components (With Torque Specifications) (Except For Hybrid Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6.4 (0.7, 4.7)

  T2:  Refer to MECHANICAL (H4DO (EXCEPT FOR HEV))>CHAIN COVER>INSTALLATION .

• Hybrid model

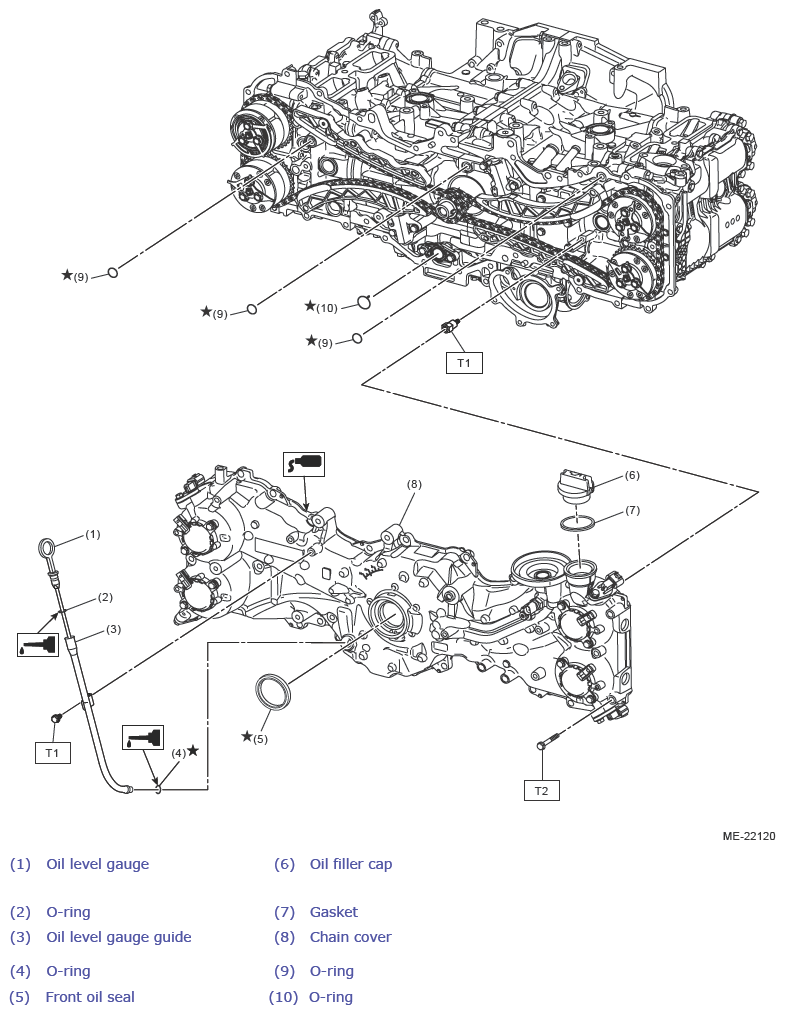

  Fig 2: Chain Cover Components (With Torque Specifications) (Hybrid Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2:  Refer to MECHANICAL (H4DO (EXCEPT FOR HEV))>CHAIN COVER>INSTALLATION .
