System Block Diagram

WARNING: This page is about a different variant/trim than selected.

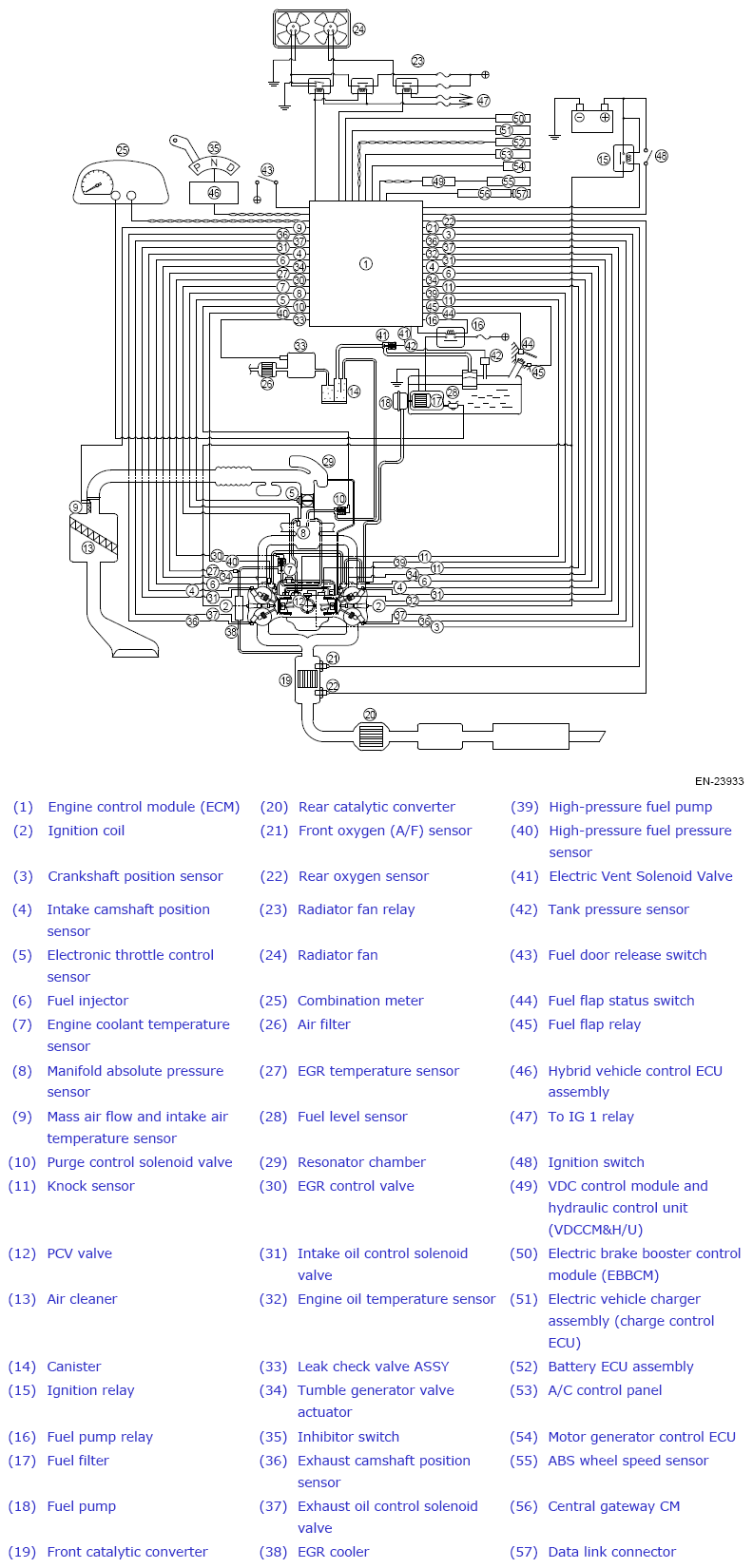

G13615050Courtesy of SUBARU OF AMERICA, INC.

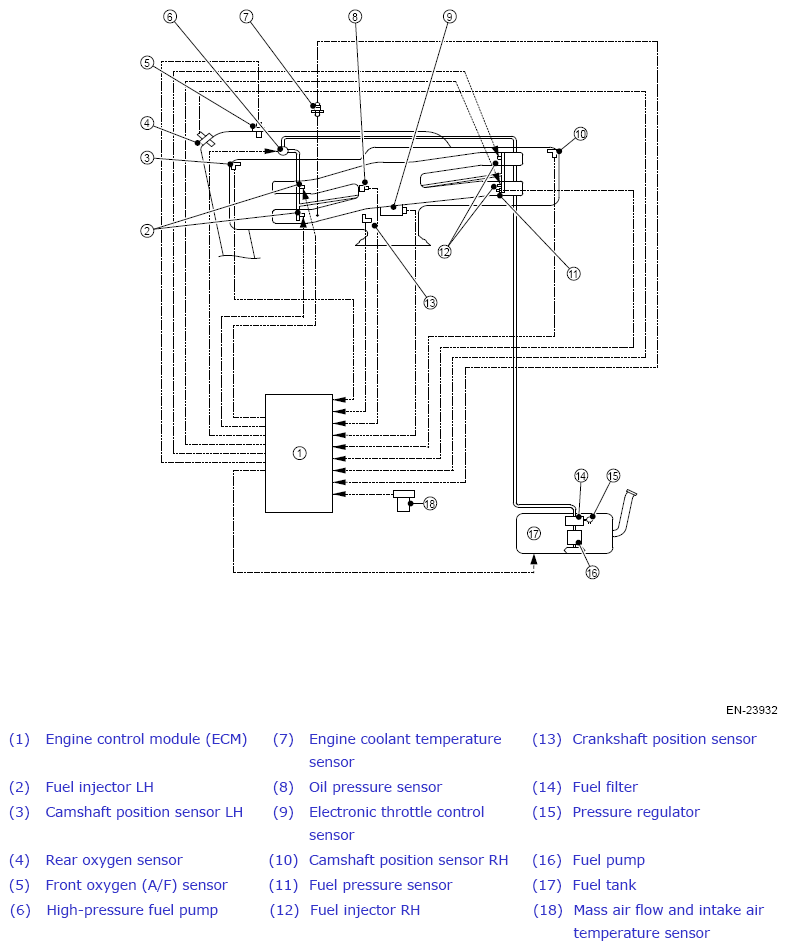

G13615051Courtesy of SUBARU OF AMERICA, INC.
