Driver's Side Power Window Does Not Work

Trouble causes:

Wiring diagram:

Power window system Ref. to WIRING SYSTEM>POWER WINDOW SYSTEM>WIRING DIAGRAM .

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to POWER WINDOW (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .

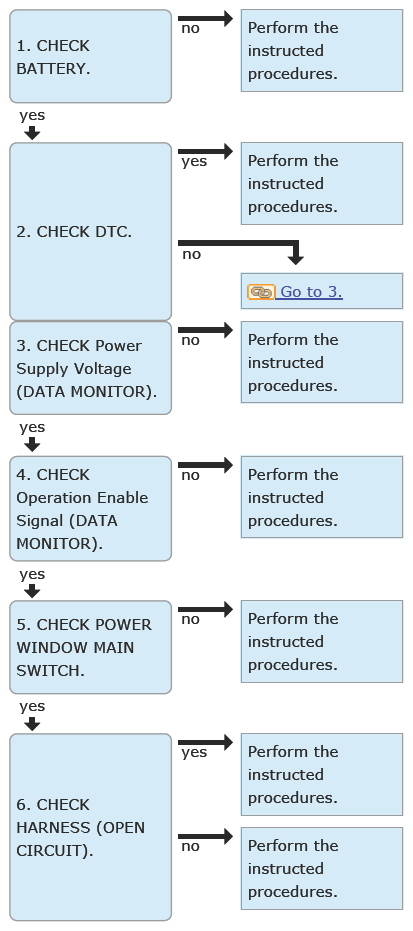

G13596026Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK BATTERY.

    Check the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSPECTION .

    Is the battery OK?

    Yes:  Go to  2.

    No:  Charge or replace the battery.

  2. CHECK DTC.

    Read the DTC of [Power Window (Driver)] using the Subaru Select Monitor. Ref. to POWER WINDOW (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

    Are any DTCs displayed? (Current malfunction)

    Yes:  Perform the diagnosis for the displayed DTCs. Ref. to POWER WINDOW (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

    No:  Go to  3.

  3. CHECK [Power Supply Voltage] (DATA MONITOR).
    1. Turn the ignition switch to ON.
    2. Using the Subaru Select Monitor, check the following items in the [Data monitor] of [Power Window (Driver)]. Ref. to POWER WINDOW (DIAGNOSTICS)>DATA MONITOR .
      • Power Supply Voltage

      Is the displayed voltage approximately 10.0 V or more?

      Yes:  Go to  4.

      No:  Replace the front regulator & motor assembly (driver's side). Ref. to GLASS/WINDOWS/MIRRORS>FRONT REGULATOR AND MOTOR ASSEMBLY .

  4. CHECK [Operation Enable Signal] (DATA MONITOR).

    Using the Subaru Select Monitor, check the following items in the [Data monitor] of [Power Window (Driver)]. Ref. to POWER WINDOW (DIAGNOSTICS)>DATA MONITOR .

    • Operation Enable Signal

    Is [ON] displayed?

    Yes:  Go to  5.

    No:  Inspect the body integrated unit. Ref. to BODY CONTROL (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .

    If no fault is found in the body integrated unit, replace the front regulator & motor assembly (driver's side). Ref. to GLASS/WINDOWS/MIRRORS>FRONT REGULATOR AND MOTOR ASSEMBLY .

  5. CHECK POWER WINDOW MAIN SWITCH.

    Perform unit inspection of power window main switch. Ref. to GLASS/WINDOWS/MIRRORS>POWER WINDOW CONTROL SWITCH .

    Is the power window main switch OK?

    Yes:  Go to  6.

    No:  Replace the power window main switch. Ref. to GLASS/WINDOWS/MIRRORS>POWER WINDOW CONTROL SWITCH .

  6. CHECK HARNESS (OPEN CIRCUIT).
    1. Disconnect the body integrated unit connector.
    2. Disconnect the power window main switch connector.
    3. Disconnect the front regulator & motor assembly connector (driver's side).
    4. Using a tester, measure the resistance between the body integrated unit connector/power window main switch and the front regulator & motor assembly (driver's side) connector.

      Connector & terminal

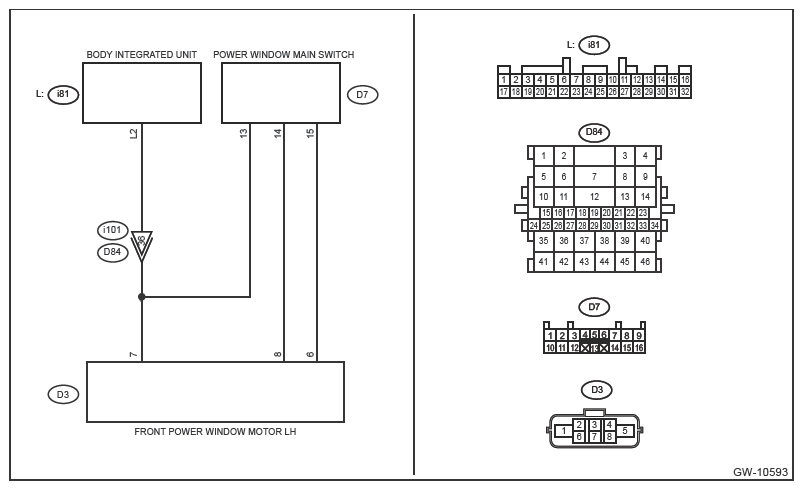

      With off-delay function for driver's seat only

      (i81) No. 2 - (D3) No. 7:

      (D7) No. 13 - (D3) No. 7:

      (D7) No. 14 - (D3) No. 8:

      (D7) No. 15 - (D3) No. 6:

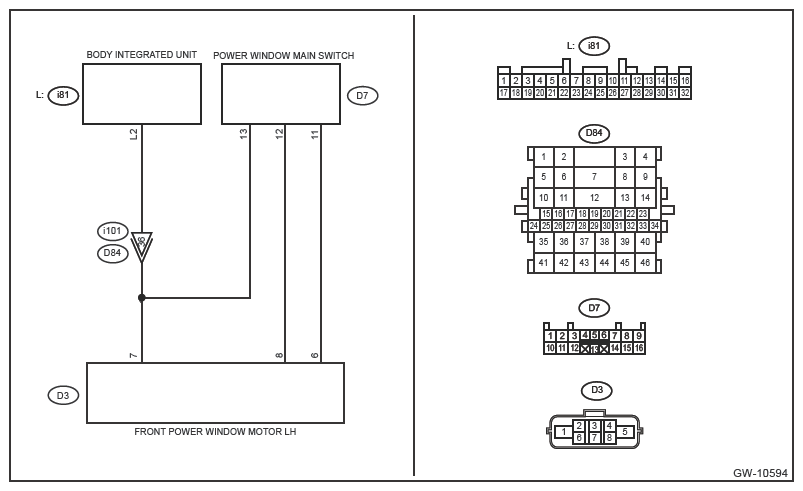

      Other than with off-delay function for driver's seat only

      (i81) No. 2 - (D3) No. 7:

      (D7) No. 13 - (D3) No. 7:

      (D7) No. 12 - (D3) No. 8:

      (D7) No. 11 - (D3) No. 6:

      Is the resistance less than 1 Ω?

      Yes:  Replace the front regulator & motor assembly (driver's side). Ref. to GLASS/WINDOWS/MIRRORS>FRONT REGULATOR AND MOTOR ASSEMBLY .

      No:  Repair the open circuit of harness between the body integrated unit connector/power window main switch and the front regulator & motor assembly (driver's side) connector.
