Exhaust Gas Recirculation Control Circuit Range/Performance

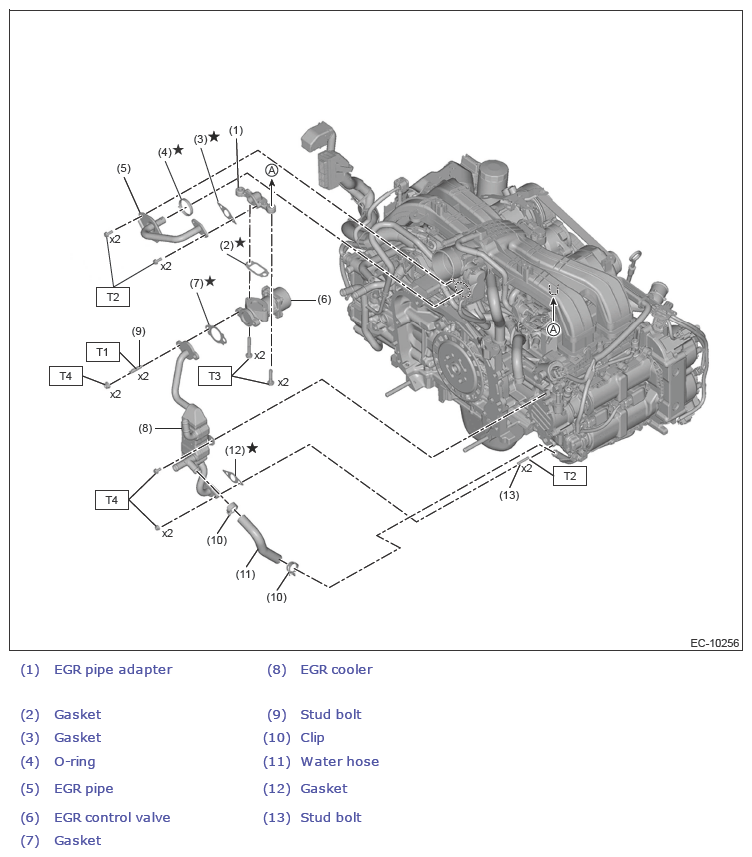

Fig 1: EGR Control Valve Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 19 (1.9, 14.0)

T4:

Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR COOLER>INSTALLATION .
