Cam Carrier

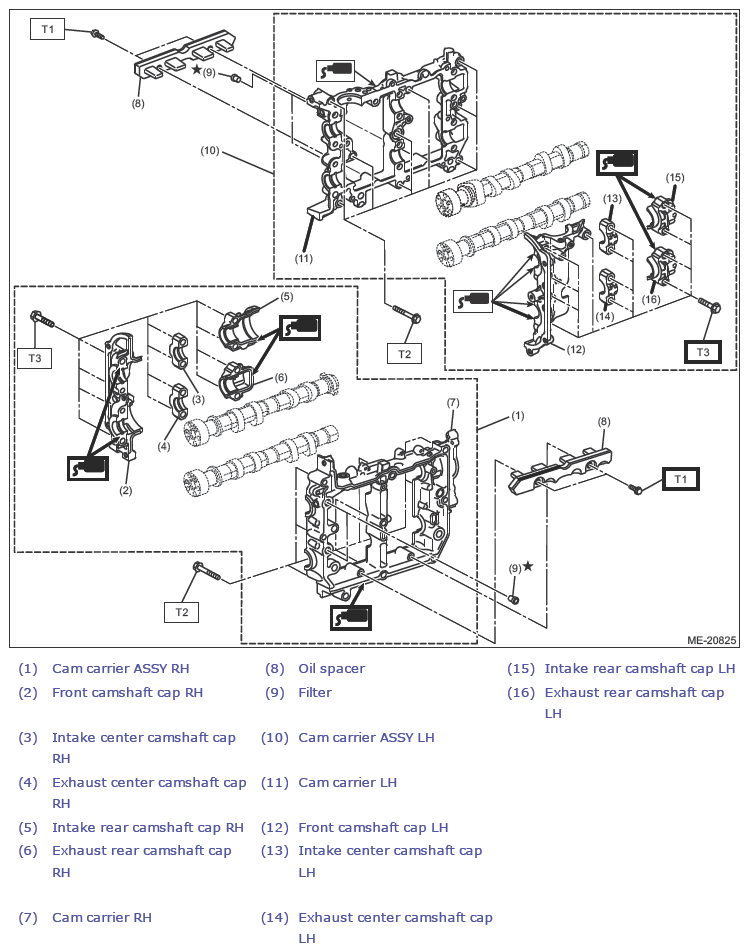

Fig 1: CAM Carrier Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2:  Refer to MECHANICAL (H4DO)>CAM CARRIER>INSTALLATION .

T3:  Refer to MECHANICAL (H4DO)>CAM CARRIER>ASSEMBLY .
