Parking Pawl: Removal

  1. Remove the transmission body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Shift the inhibitor switch to "N range".
    NOTE: Align the holes of the shifter arm and inhibitor switch.
  3. Remove the electric oil pump. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>ELECTRIC FLUID PUMP>REMOVAL .
  4. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>REMOVAL .

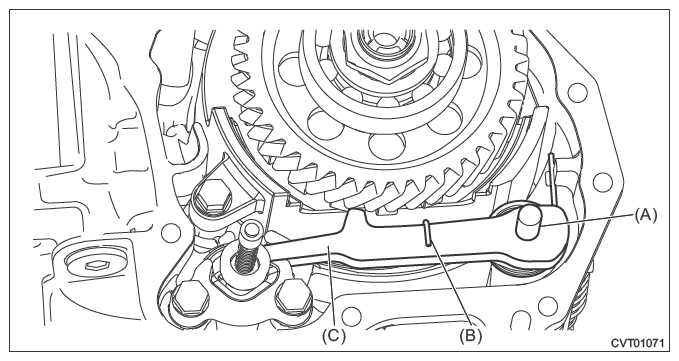

  5. Remove the parking pawl shaft (A), return spring (B) and parking pawl (C).
    G13225832Courtesy of SUBARU OF AMERICA, INC.
