Unit And Rear Gate

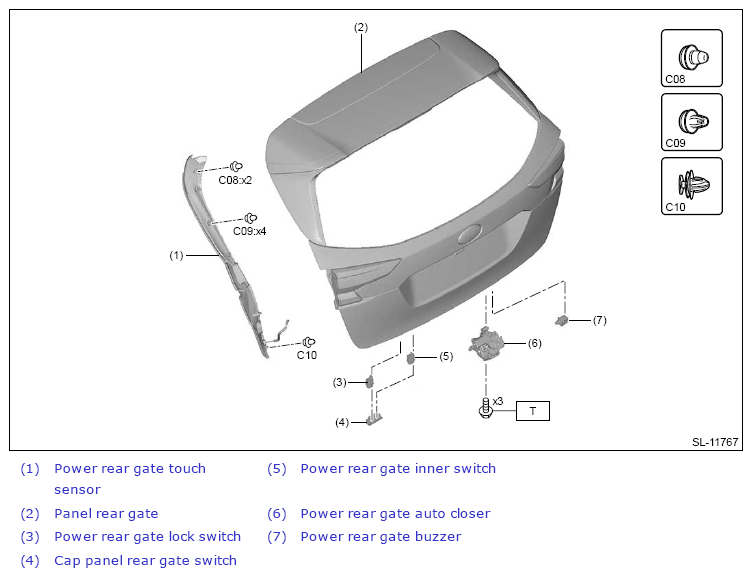

Fig 1: Unit And Rear Gate Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 16 (1.6, 11.8)

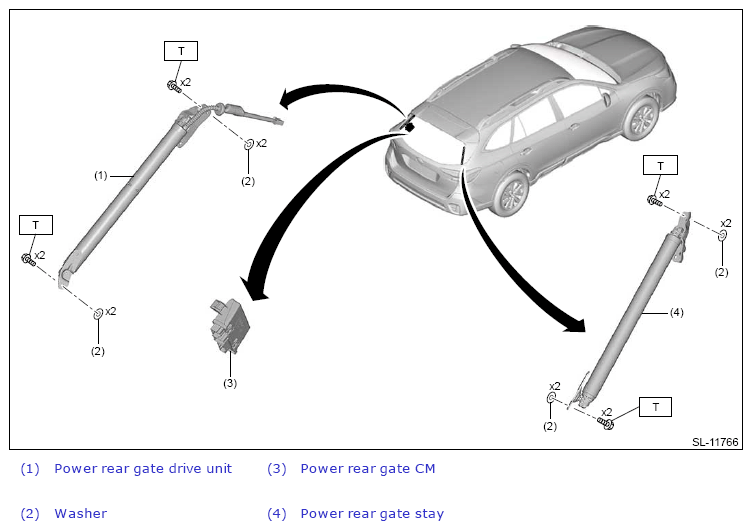

Fig 2: Unit And Rear Gate Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
