Home › Subaru › 2020 › Outback Base › Repair and Diagnosis › Body & Frame › Seats › Power Seat Memory System (Diagnostics) › Electrical Component Location › Location

Power Seat Memory System (Diagnostics): Electrical Component Location: Location

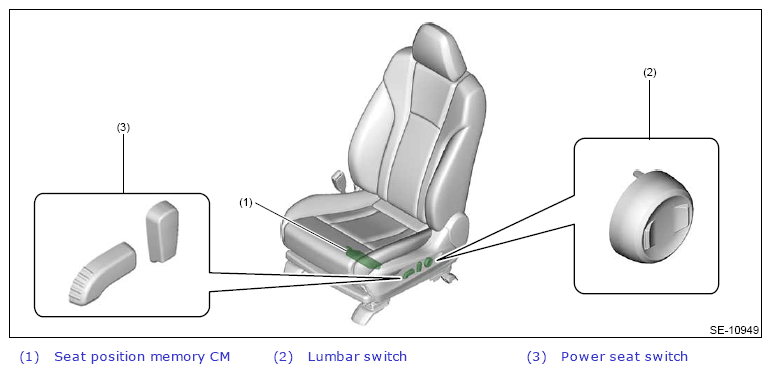

G13632941Courtesy of SUBARU OF AMERICA, INC.

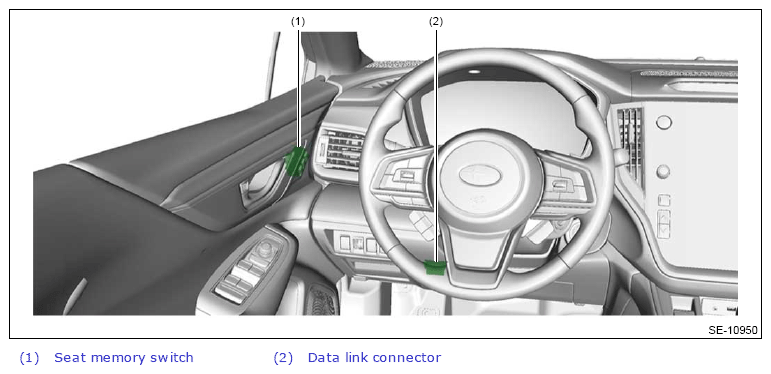

G13632942Courtesy of SUBARU OF AMERICA, INC.

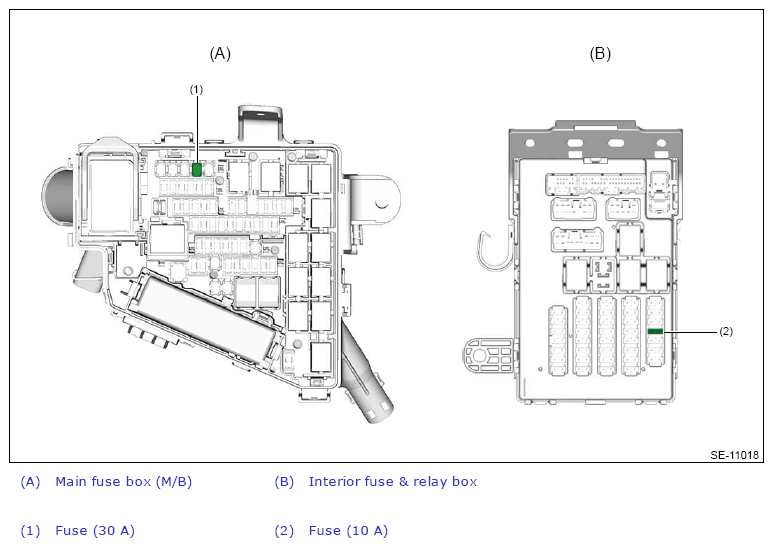

G13632943Courtesy of SUBARU OF AMERICA, INC.
