Auto Start Stop System (Diagnostics): Electrical Component Location: Location

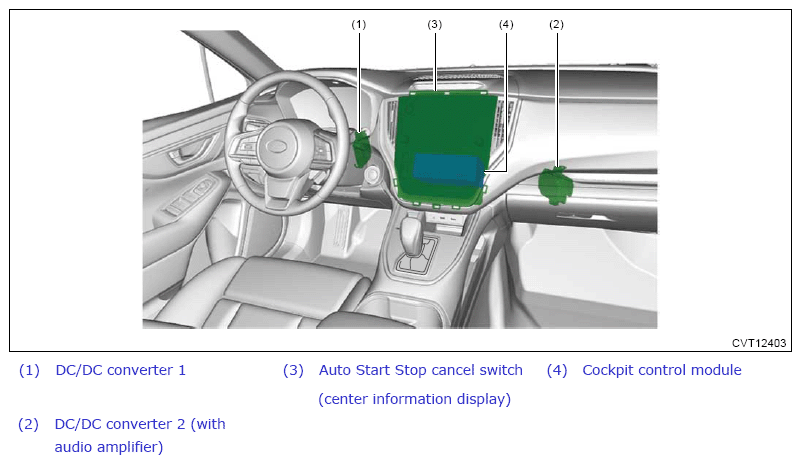

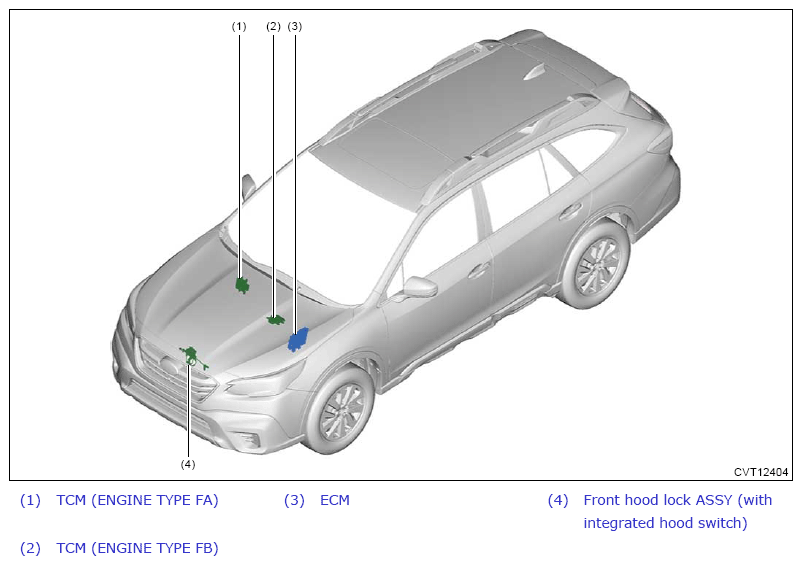

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.

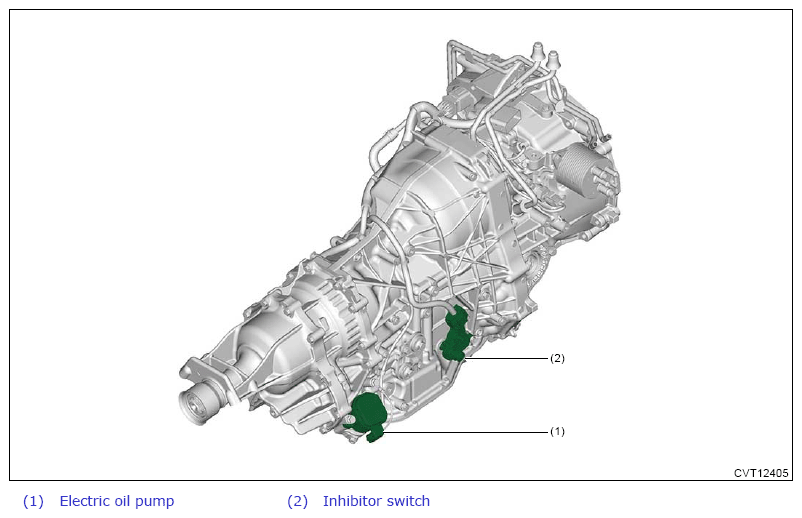

ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.

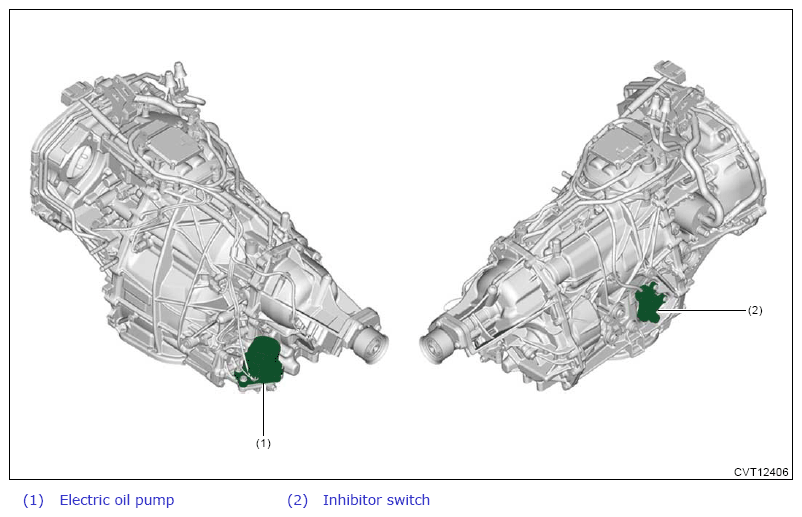

ENGINE TYPE FA

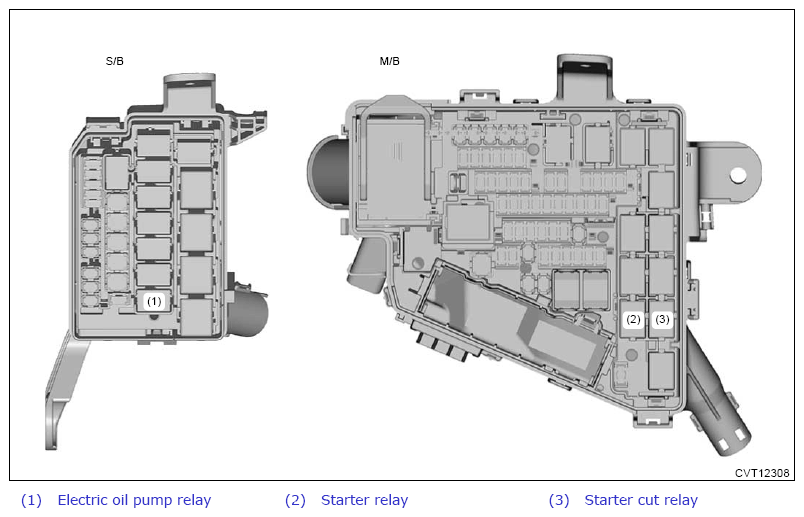

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
