Chain Cover

WARNING: This page is about a different variant/trim than selected.

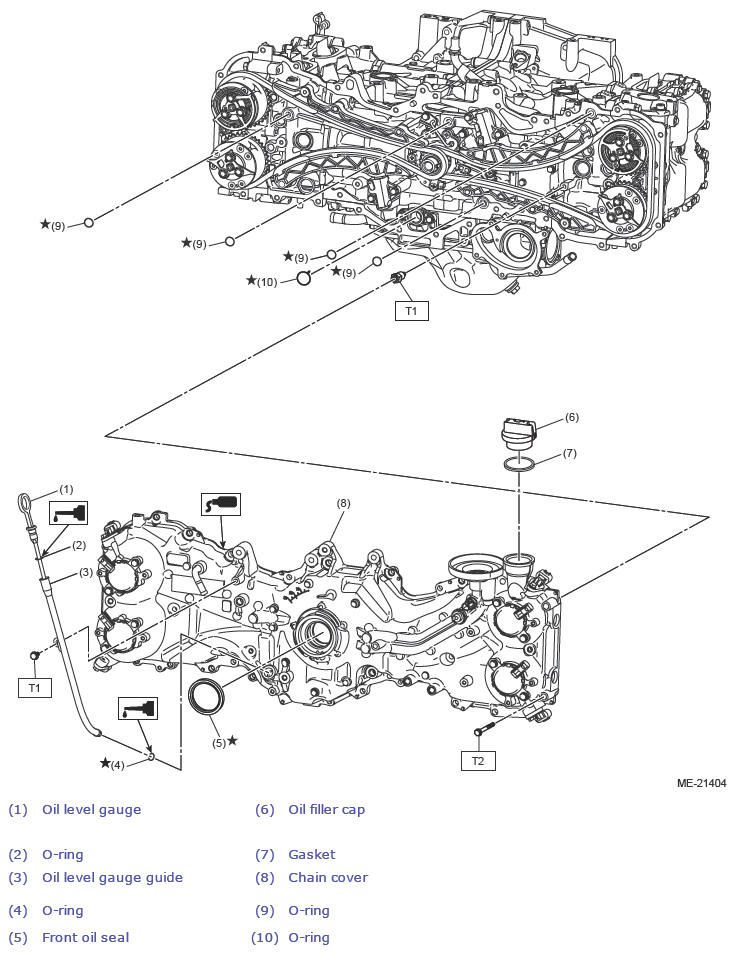

Fig 1: Chain Cover Components (With Torque Specification)

G13620030

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Refer to MECHANICAL (H4DOTC)>Chain Cover>INSTALLATION .
