Cylinder Block 1

WARNING: This page is about a different variant/trim than selected.

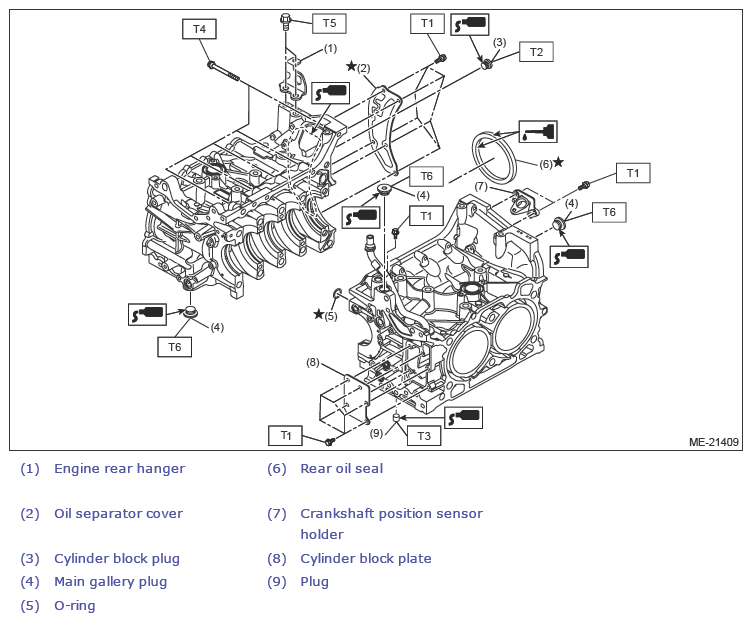

Fig 1: Cylinder Block 1 Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3: 23 (2.3, 17.0)

T4: 25 (2.5, 18.4)

T5: 36 (3.7, 26.6)
