Engine Mounting

WARNING: This page is about a different variant/trim than selected.

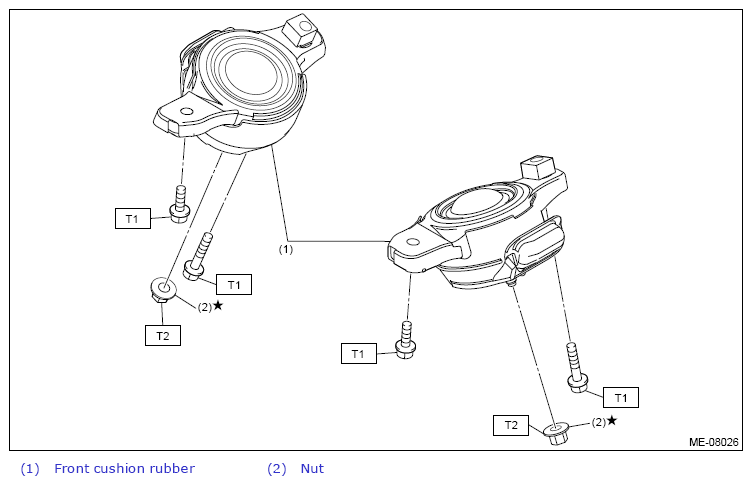

Fig 1: Engine Mounting Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 90 (9.2, 66.4)
