Front Exhaust Pipe: Assembly

WARNING: This page is about a different variant/trim than selected.

Install each exhaust cover.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

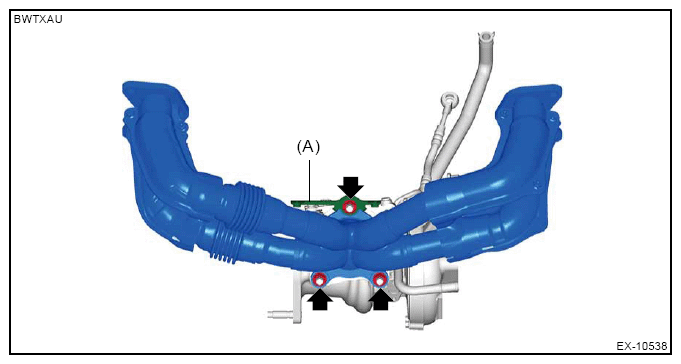

Using a new gasket, install the front exhaust pipe and the exhaust stay (A).
CAUTION: Be sure to use a new self-locking nut.

Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

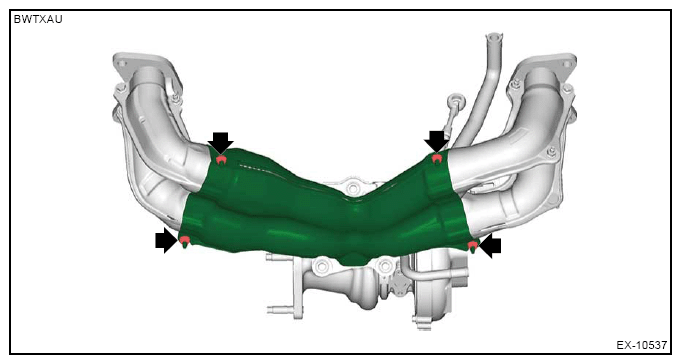

Install the exhaust cover.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

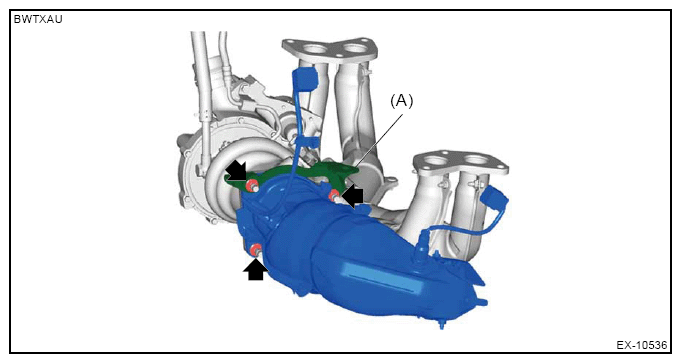

Using a new gasket, install the center exhaust pipe (front) and the exhaust stay (A).
CAUTION: Be sure to use a new self-locking nut.

Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

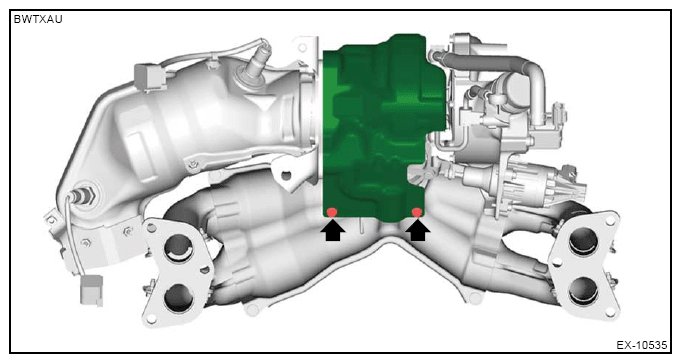

Install the exhaust cover.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
