Center Exhaust Pipe

WARNING: This page is about a different variant/trim than selected.

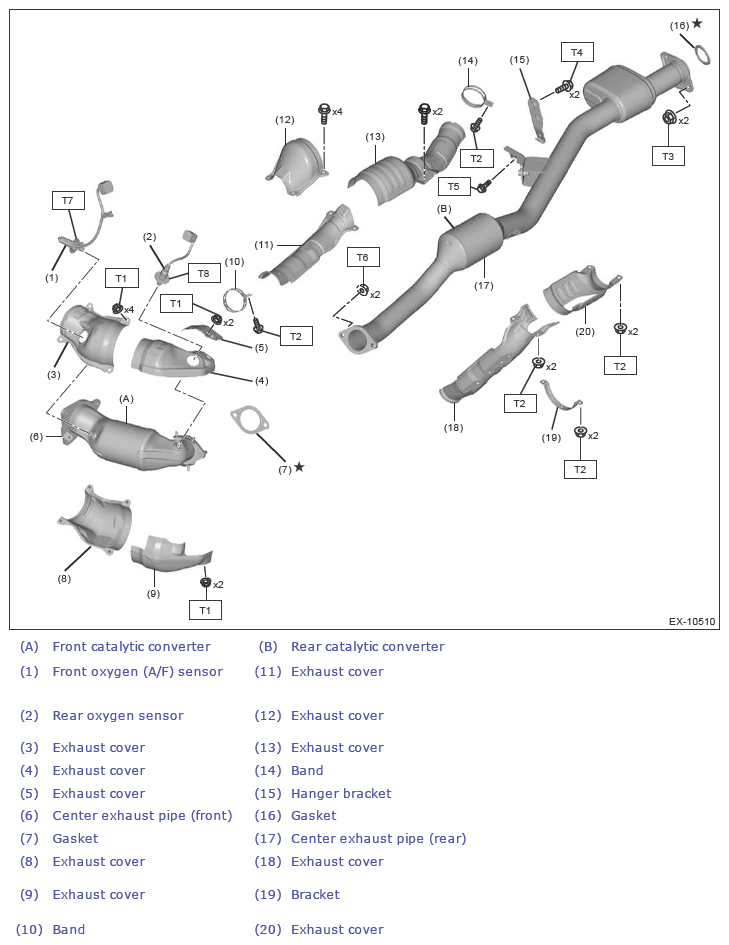

Fig 1: Center Exhaust Pipe Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 13 (1.3, 9.6)

T3: 18 (1.8, 13.3)

T4: 30 (3.1, 22.1)

T5: 35 (3.6, 25.8)

T6: 42.5 (4.3, 31.3)
