Heat Shield Cover

WARNING: This page is about a different variant/trim than selected.

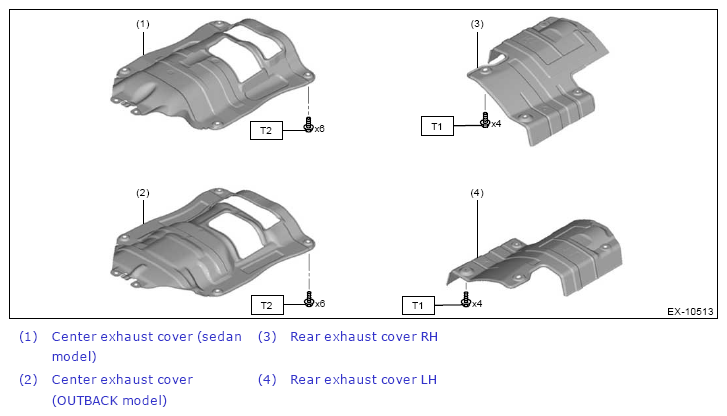

Fig 1: Heat Shield Cover Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
