Oil Pipe

WARNING: This page is about a different variant/trim than selected.

Oil pipe (vacuum pump)

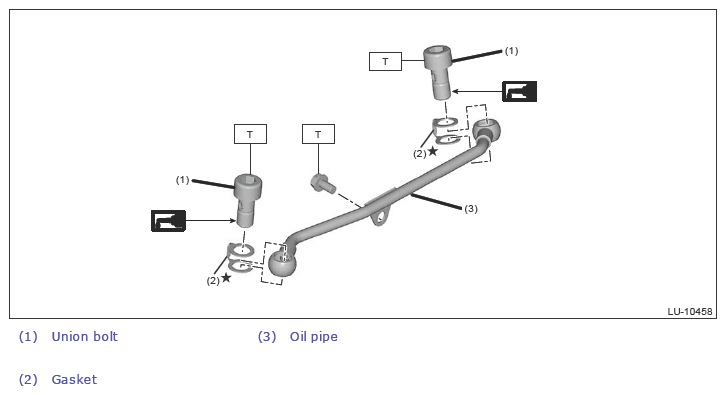

Fig 1: Oil Pipe Components (With Torque Specification) (Vacuum Pump)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Refer to LUBRICATION (H4DOTC)>Oil Pipe>INSTALLATION>OIL PIPE (VACUUM PUMP) .
Oil pipe (scavenge pump)

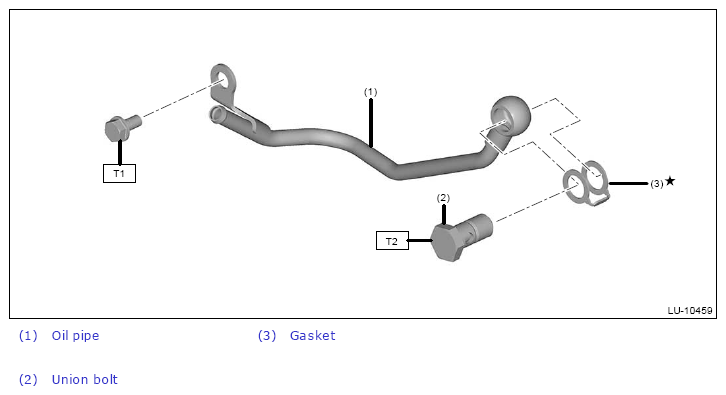

Fig 2: Oil Pipe Components (With Torque Specification) (Scavenge Pump)

G13620627

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7) T2: 31.5 (3.2, 23.2)
