CVT Transaxle (Tr580) (Service Information)
›
General Description
›
Components With Torque Specifications
›
Oil Pump
Oil Pump

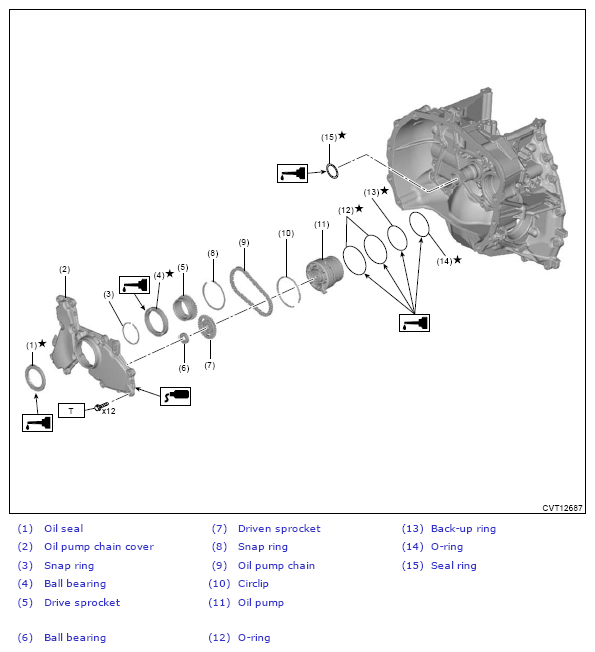

Fig 1: Oil Pump Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 21 (2.1, 15.5)
