Continuously Variable Transmission (Diagnostics): Electrical Component Location: Location
Courtesy of SUBARU OF AMERICA, INC.

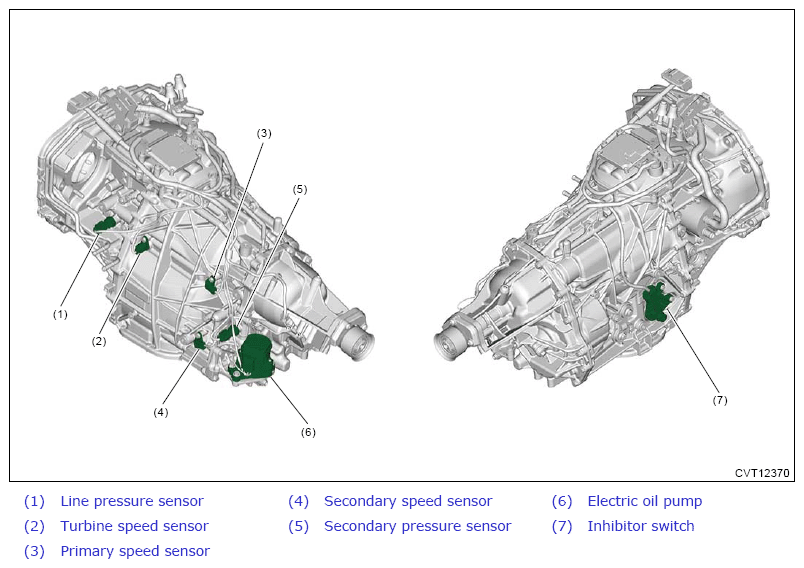

ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.

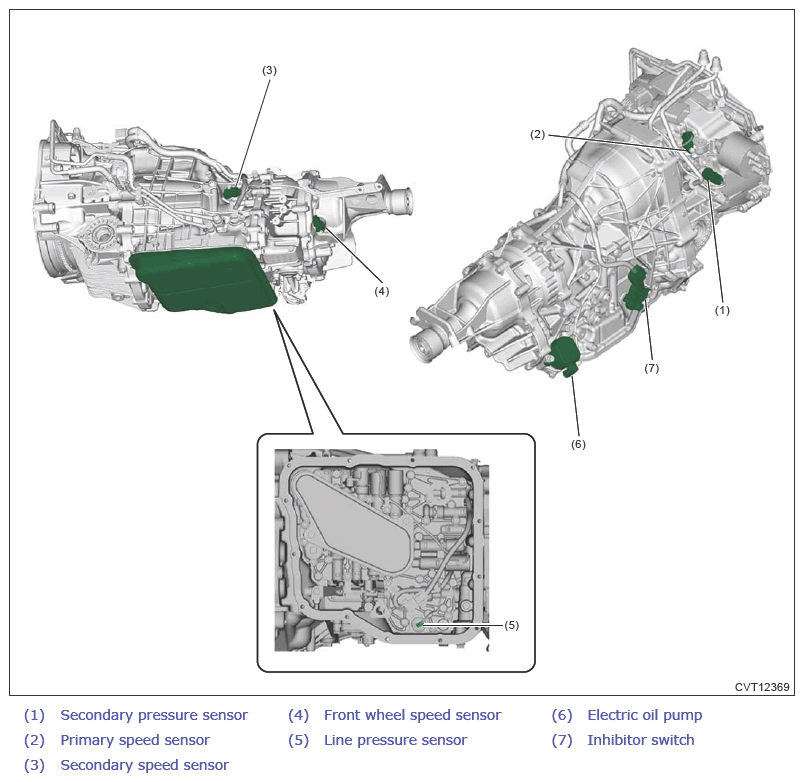

ENGINE TYPE FA

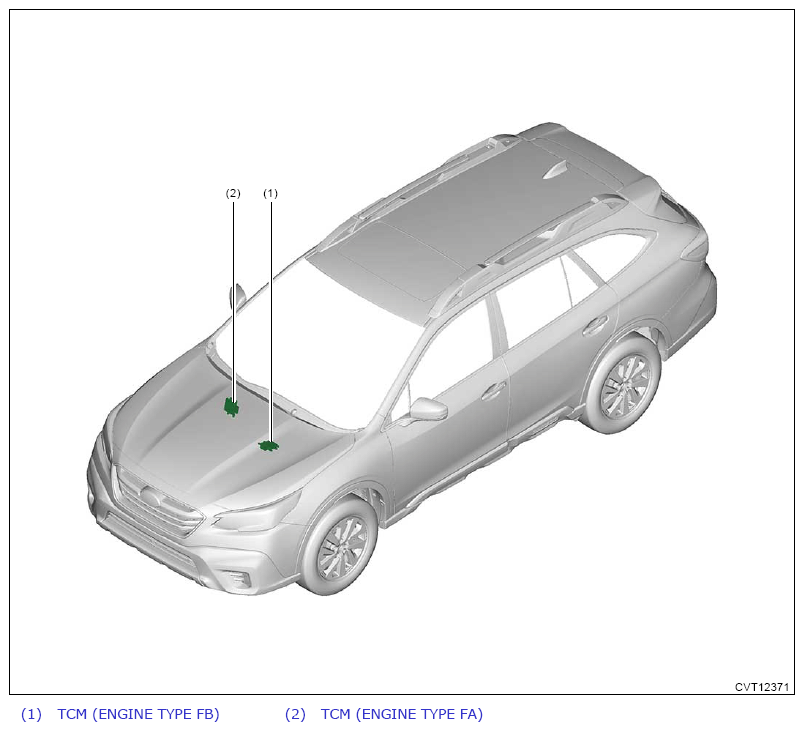

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
