Battery Sensor: Removal
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .

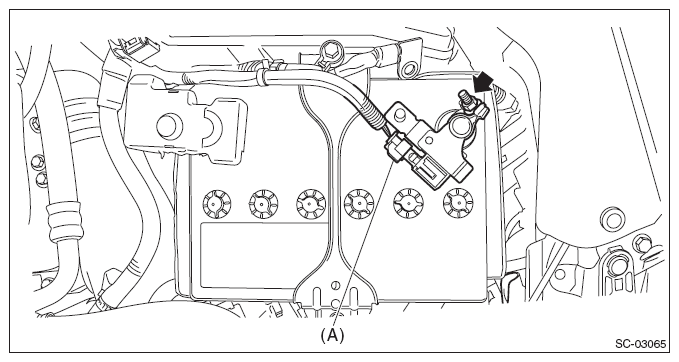

- Disconnect the connector (A) from the battery sensor, and remove the battery sensor.
CAUTION:
The end of the bolt (a) of the battery sensor is crimped. Therefore, do not loosen the nut (b) to the crimped portion.
