Multi-Function Display
- Normal type

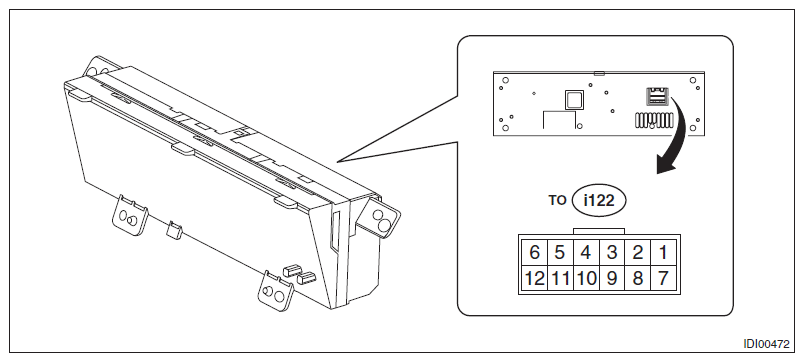

Terminal No. Item Measuring condition Standard 1 (+B) ←→ Chassis ground Voltage Always 10 - 14 V 2 (IG) ←→ Chassis ground Voltage IG OFF → ON 0 V → 8 V or more 3 (GND) ←→ Chassis ground Resistance Always Less than 1 Ω 4 (MFD SW+) ←→ Chassis ground Voltage SW OFF → ON 10 - 14 V → 0 V 8 (U-ART com.) - Cannot be measured - - High grade type
For the specification (electrical component), refer to the "Control Module I/O Signal" of the "MULTIFUNCTION DISPLAY (DIAGNOSTICS)" information. Ref. to MULTI-FUNCTION DISPLAY (DIAGNOSTICS)>Control Module I/O Signal>ELECTRICAL SPECIFICATION .
