EyeSight Assist Monitor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille defroster front assembly. Ref. to INSTRUMENTATION/DRIVER INFO>Multi-function Display (MFD)>REMOVAL .
  3. Remove the EyeSight assist monitor.

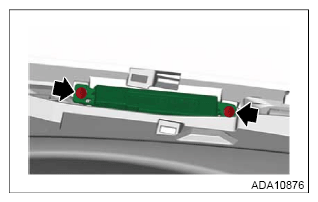

    1. Remove the screws.
      G12401624Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the EyeSight assist monitor.
