General Description
›

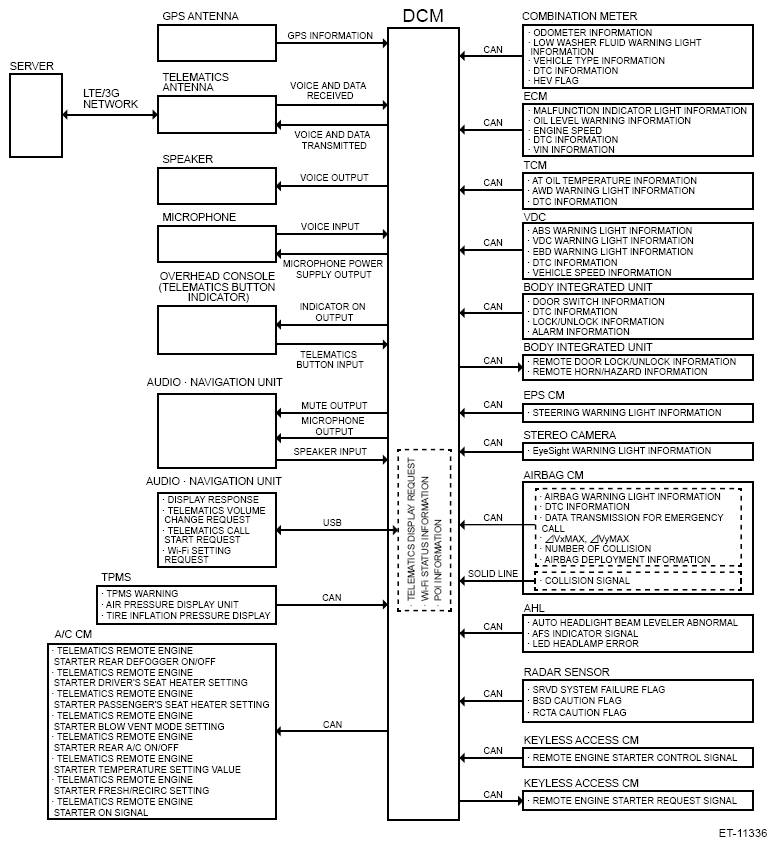

System Block Diagram
System Block Diagram
Main signals used between DCM and relevant control module
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
