Front Fog Light Assembly: Removal

  1. Disconnect the ground terminal from battery sensor Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.

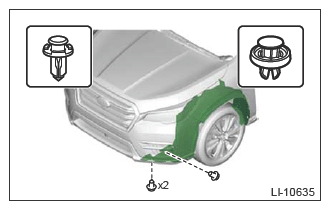

  3. Turn over the mud guard front.
    1. Remove the clips, and turn over the mud guard front.
      G13200814Courtesy of SUBARU OF AMERICA, INC.

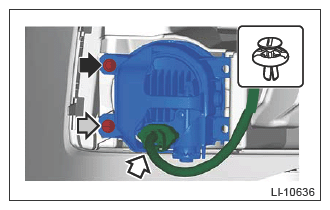

  4. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the guides, then remove the fog light assembly front.
      G13200815Courtesy of SUBARU OF AMERICA, INC.
