Lighting System: General Description: Specification

Courtesy of SUBARU OF AMERICA, INC.

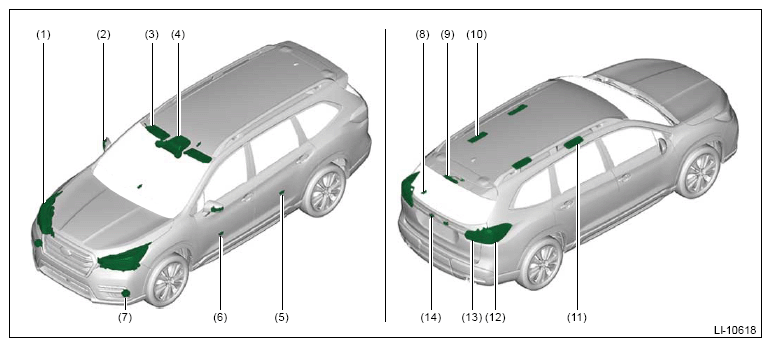

No.	Description		Capacity and wattage	Type
(1)	Headlight	Low beam/high beam	13.5 V - 29/32 W (LED)	(1)
		Front turn signal light	12 V - 28 W	7444NA
		Daytime running light/parking light	13.5 V - 22/1.1 W (LED)	(1)
		Side marker light	13.5 V - 2.7 W (LED)	(1)
(2)	Side turn signal light		12 V - 0.4 W (LED)	(1)
(3)	Vanity mirror light		14 V - 1.4 W	-
(4)	Spot map light		12 V - 8 W	-
(5)	Rear door step light		12 V - 5 W	W5W
(6)	Front door step light		12 V - 5 W	W5W
(7)	Front fog light		12 V - 5.4 W (LED)	(1)
(8)	Luggage room light		12 V - 5 W	W5W
(9)	High-mounted stop light		12 V - 1.1 W (LED)	(1)
(10)	Reading light (3rd row)		12 V - 8 W	-
(11)	Reading light (2nd row)		12 V - 8 W	-
(12)	Rear combination light	Tail light	13.5 V - 0.4 W (LED)	(1)
		Stop light	13.5 V - 5 W (LED)	(1)
		Turn signal light	12 V - 21 W	WY21W
		Side marker light	12 V - 5 W	W5W
		Back-up light	12 V - 16 W	W16W
(13)	Rear finisher		-	-
(14)	License plate light		12 V - 5 W	W5W
(1) Non-disassembly type

Courtesy of SUBARU OF AMERICA, INC.

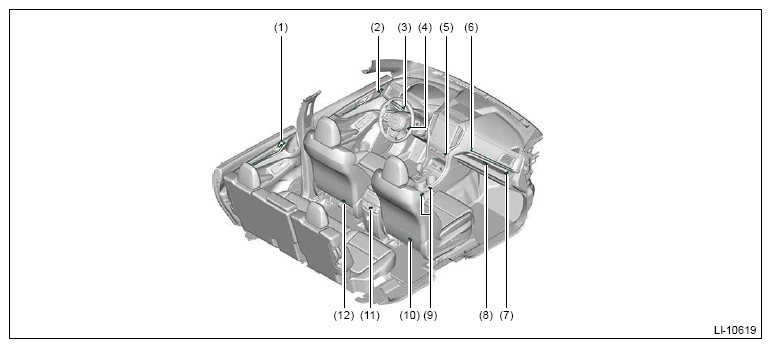

No.	Description	Capacity	Type
(1)	Rear door ambient light	12 V (LED)	(1)
(2)	Front door ambient light	12 V (LED)	(1)
(3)	Instrument panel ambient light (driver's seat)	12 V (LED)	(1)
(4)	Front foot light (driver's seat)	12 V (LED)	(1)
(5)	Pocket light	12 V (LED)	(1)
(6)	Instrument panel ambient light (passenger's seat)	12 V (LED)	(1)
(7)	Front foot light (passenger's seat)	12 V (LED)	(1)
(8)	Glove box light	12 V (LED)	(1)
(9)	Cup holder light	12 V (LED)	(1)
(10)	Rear foot light (passenger's seat)	12 V (LED)	(1)
(11)	Center foot light	12 V (LED)	(1)
(12)	Rear foot light (driver's seat)	12 V (LED)	(1)
(1) Non-disassembly type
