Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  3. Remove the bracket grille front.
    1. Remove the clips, and remove the bracket grille front.

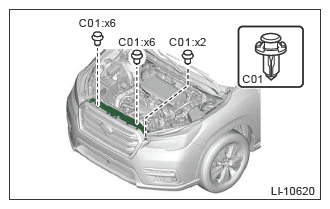

      G13200497Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>Front Bumper>REMOVAL .
  5. Remove the energy absorber UPR.
    1. Remove the bolts and clips, and remove the energy absorber UPR.

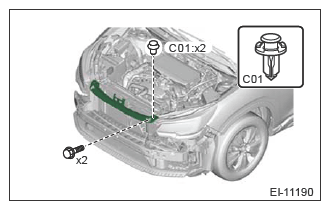

      G13200798Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cover fender UPR.
    1. Remove the clip, and remove the cover fender UPR.

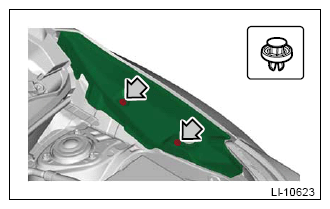

      G13200799Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the bracket corner front.
    1. Remove the clip.
    2. Remove the bolts, and remove the bracket corner front.

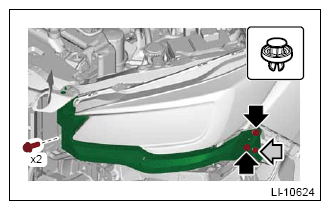

      G13200800Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the light assembly head.
    CAUTION: Be careful not to damage the light assembly head and the fender COMPL front.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the light assembly head.

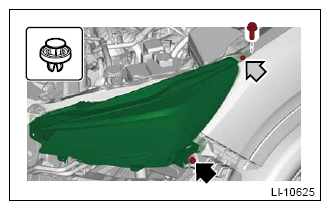

      G13200801Courtesy of SUBARU OF AMERICA, INC.
