Rear Combination Light Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

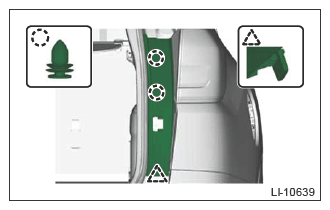

  2. Remove the cover assembly rear combination light.
    1. Release the clip and hook, and then remove the cover assembly rear combination light.
      G13200822Courtesy of SUBARU OF AMERICA, INC.

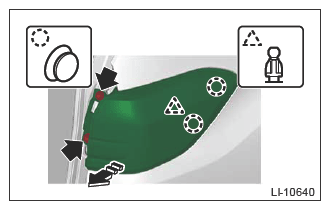

  3. Remove the light assembly combination rear.
    1. Release the bolts and clips, then pull out the light assembly combination rear to the vehicle rear as shown in the figure.
      CAUTION: Be careful not to damage the clips.
      G13200823Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the light assembly combination rear.

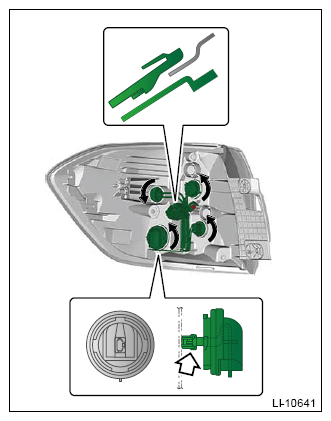

  4. Remove the cord assembly.
    1. Release the claws and remove the connector.
    2. Remove the harness cover and disconnect the connector.
    3. Remove each bulb socket and remove the cord assembly.
      G13200824Courtesy of SUBARU OF AMERICA, INC.
