Backup Unit: Removal
- Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the grille ventilation assembly center, Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .
- Remove the switch assembly hazard. Ref. to LIGHTING SYSTEM>Hazard Switch>REMOVAL .
- Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>Audio>REMOVAL .

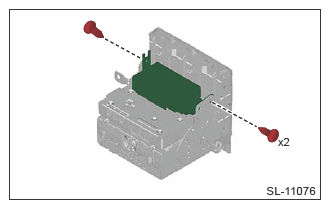

- Remove the screws and remove the backup unit.
