Front Hood Lock Assembly: Removal

  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front and the bracket grille front. Ref. to EXTERIOR/INTERIOR TRIM>Front Bumper>REMOVAL
  3. Remove the lock assembly front hood.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the lock assembly front hood.

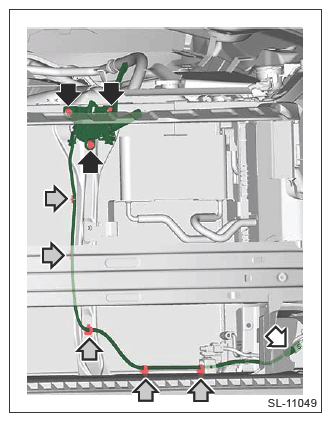

      G13201434Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the cable assembly front hood.
    G13201435Courtesy of SUBARU OF AMERICA, INC.
