Keyless Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the under cover front, Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL
  4. Remove the screw and clips, and turn over the mud guard front.

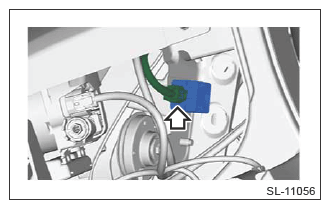

  5. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.
    G13201463Courtesy of SUBARU OF AMERICA, INC.
