Push Button Ignition Switch: Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>instrument Panel Lower Cover>REMOVAL .
3. Remove the grille ventilation assembly center Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .
4. Remove the visor assembly. Ref. to INSTRUMENTATION/DRIVER INFO>Combination Meter>REMOVAL .

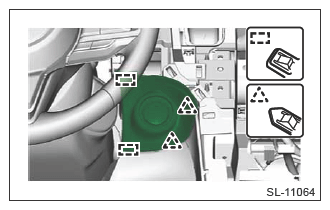

5. Remove the panel starter switch.
   1. Release the claws.
   2. Detach the connectors and remove the panel starter switch.

   Courtesy of SUBARU OF AMERICA, INC.

6. Remove the switch assembly starter.

Courtesy of SUBARU OF AMERICA, INC.
