Home › Subaru › 2021 › Ascent Base › Repair and Diagnosis › Body & Frame › Seats › Power Seat Memory System (Diagnostics) › Electrical Component Location › Location

Power Seat Memory System (Diagnostics): Electrical Component Location: Location

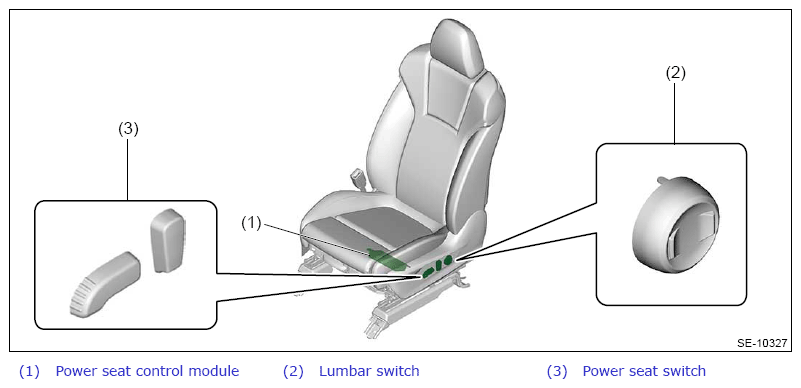

G13873729Courtesy of SUBARU OF AMERICA, INC.

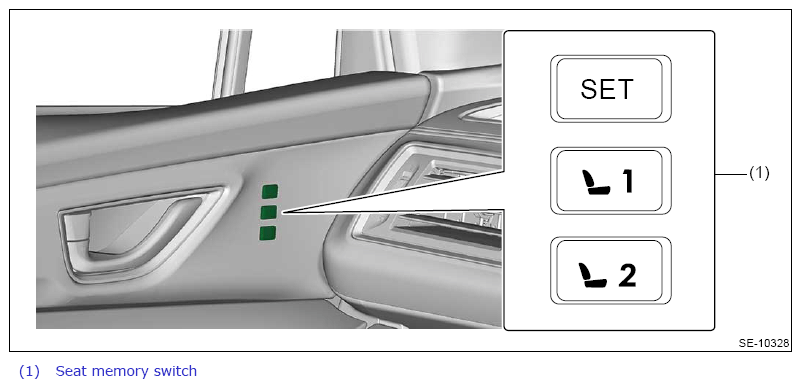

G13873730Courtesy of SUBARU OF AMERICA, INC.

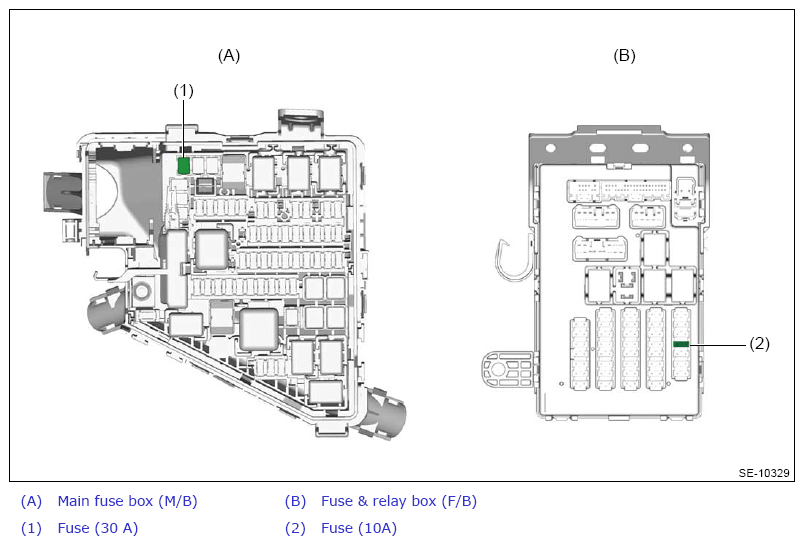

G13873731Courtesy of SUBARU OF AMERICA, INC.
