Third-Row Seats

Courtesy of SUBARU OF AMERICA, INC.

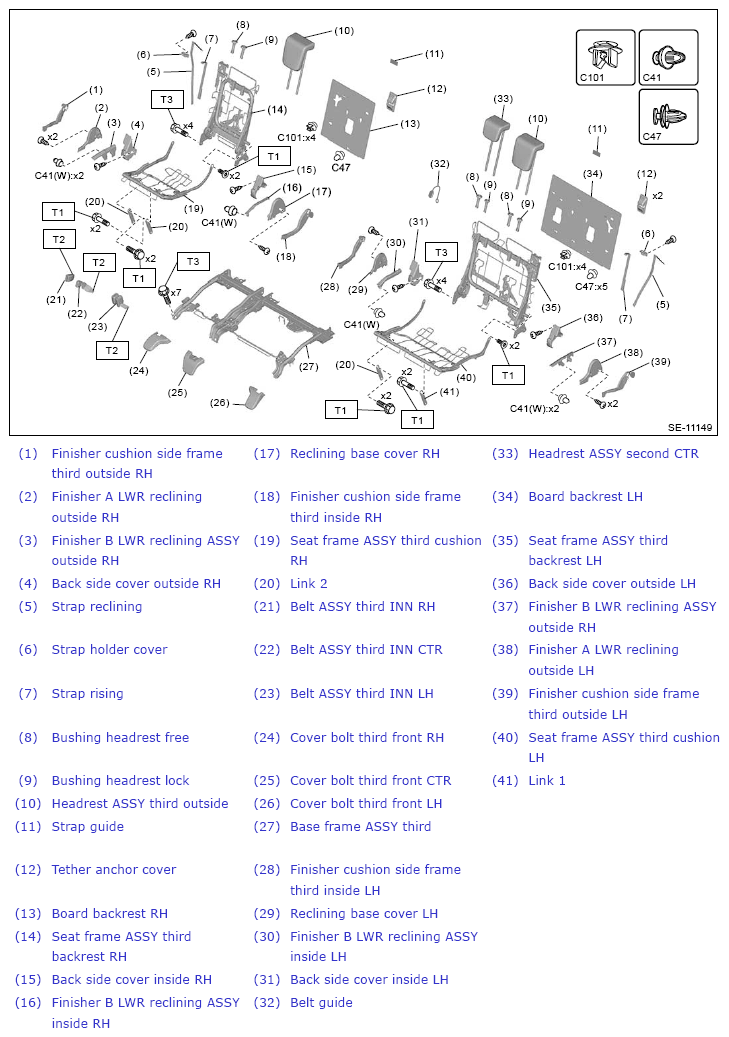

Fig 1: Exploded View Of Third-Row Seats Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 23 (2.3, 17.0)

T2: 36.5 (3.7, 27.0)

T3: 53 (5.4, 39.1)

Courtesy of SUBARU OF AMERICA, INC.
