Power Seat System
›
Inspection
›
Note
›
Harness Layout
Harness Layout

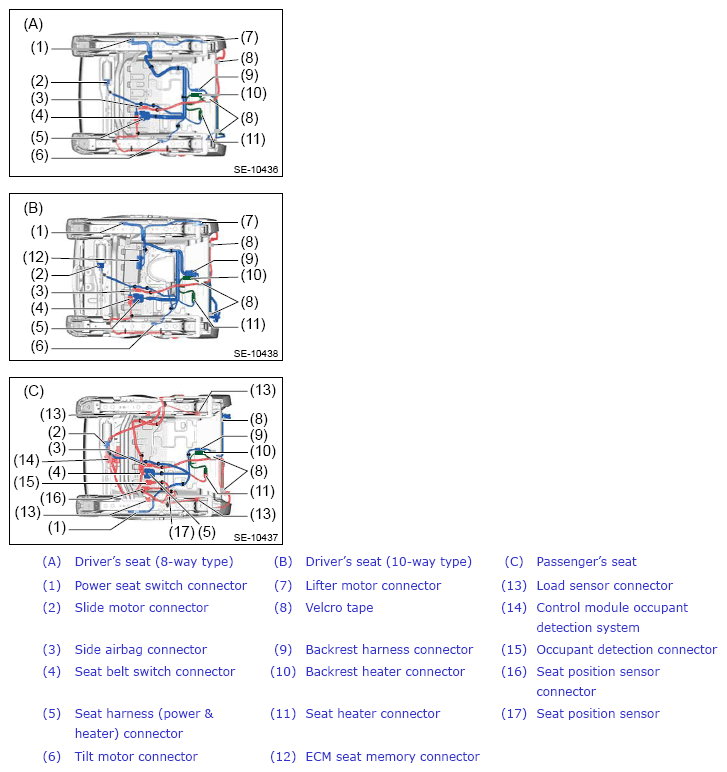

Power seats (type without ventilation)
Courtesy of SUBARU OF AMERICA, INC.

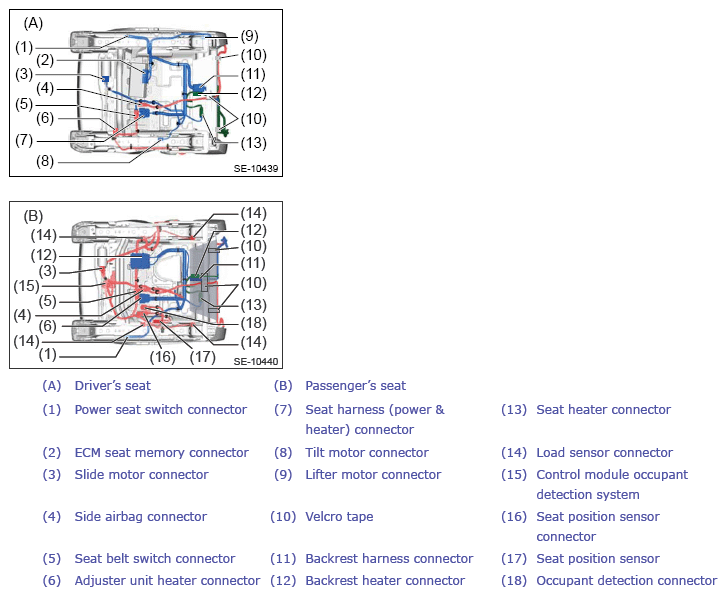

Power seats (type with ventilation)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
