Sunroof Assembly: Installation

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM" . Ref. to AIRBAG SYSTEM>General Description>CAUTION .
For installation of the stereo camera cover assembly, refer to "INSTALLATION", "Stereo Camera" in the "EyeSight" information and observe the precautions for installation . Ref. to EYESIGHT>Stereo Camera>INSTALLATION .
Be careful not to snag the harness .

Install the tube drain.
Install the sunroof assembly.
Tightening torque:

Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>General Description>COMPONENT .
Install the lid assembly front and the lid assembly rear. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>Glass Lid>INSTALLATION .
Install the bolt which secures the curtain airbag module.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Connect the tube drain.

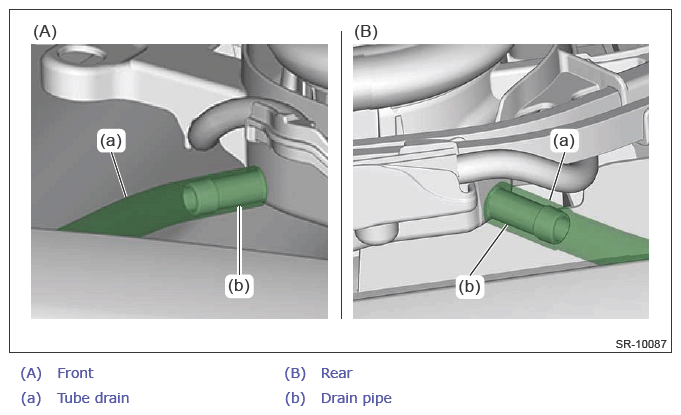

CAUTION: Insert the tube drain until it contacts the end of drain pipe .

Courtesy of SUBARU OF AMERICA, INC.
Check for the water leakage for each part and if there is no problem install the following
parts.
- Front side
  - Mud guard front
  - Glove box
  - Cover LWR driver
- Rear side
  - Bumper face rear
Install the trim panel sub assembly. Ref. to EXTERIOR/INTERIOR TRIM>Roof Trim>INSTALLATION .
Remove the stereo camera cover assembly. Ref. to EYESIGHT>Stereo Camera>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
