Side Engine Oil Cooler Pipe

Connect the water hose to the side engine oil cooler pipe.

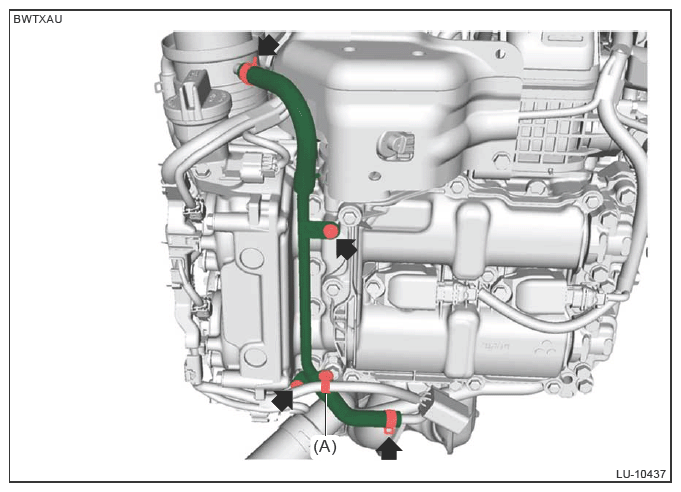

Install the side engine oil cooler pipe together with the water hose, and install the clip (A).
NOTE: When connecting the water hose to the engine oil cooler, align the direction of the clip within the range shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe (front). Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>INSTALLATION>CENTER EXHAUST PIPE (FRONT) .
Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>Battery>INSTALLATION .
Fill engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
