Oil Pan Upper

  1. Remove the water pump. Ref. to COOLING (H4DOTC)>Water Pump>REMOVAL .
  2. Remove the thermostat cover. Ref. to COOLING (H4DOTC)>Thermostat>REMOVAL>ENGINE SIDE .
  3. Remove the oil level switch. Ref. to LUBRICATION (H4DOTC)>Oil Level Switch>REMOVAL .

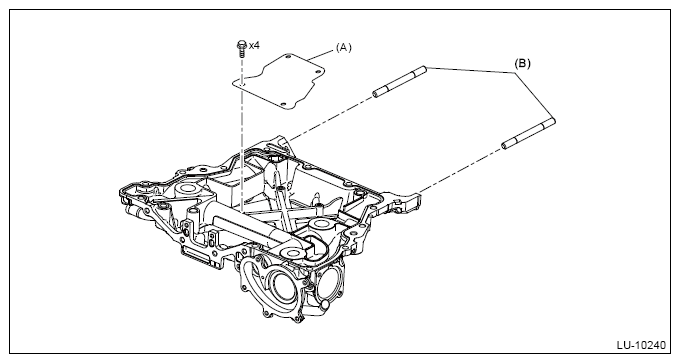

  4. Remove the baffle plate (A).
  5. Remove the stud bolt (B).
G13199159Courtesy of SUBARU OF AMERICA, INC.
