Rear Exhaust Pipe And Muffler

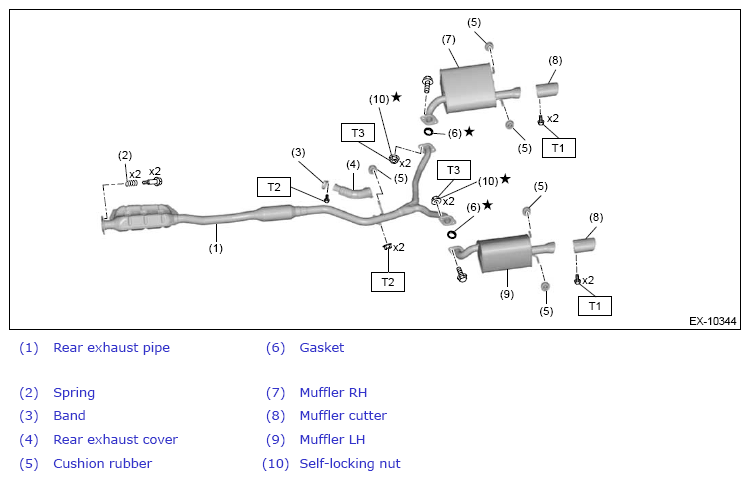

Fig 1: Exploded View Of Rear Exhaust Pipe And Muffler Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.2 (0.6, 4.6)

T2: 13 (1.3, 9.6)

T3: 48 (4.9, 35.4)
