Rear Exhaust Pipe: Removal

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

1. Remove the muffler. Ref. to EXHAUST (H4DOTC)>Muffler>REMOVAL .

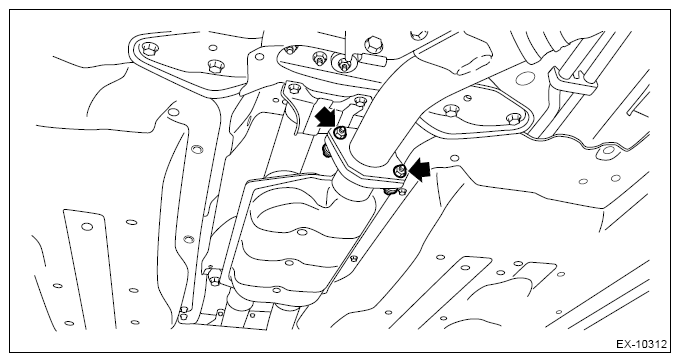

2. Disconnect the center exhaust pipe (rear) and the rear exhaust pipe.
   CAUTION: Be careful not to drop the rear exhaust pipe.

   Courtesy of SUBARU OF AMERICA, INC.

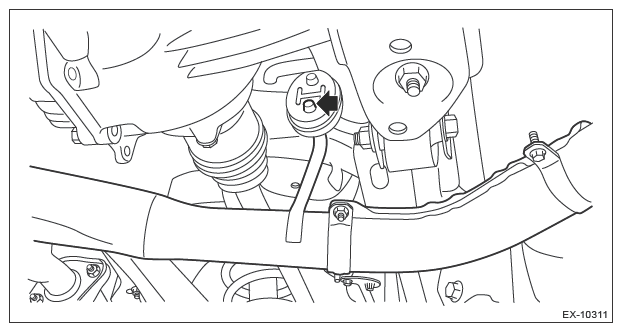

3. Apply a coat of spray type lubricant to the mating area of cushion rubber, and remove the rear exhaust pipe.

   Courtesy of SUBARU OF AMERICA, INC.

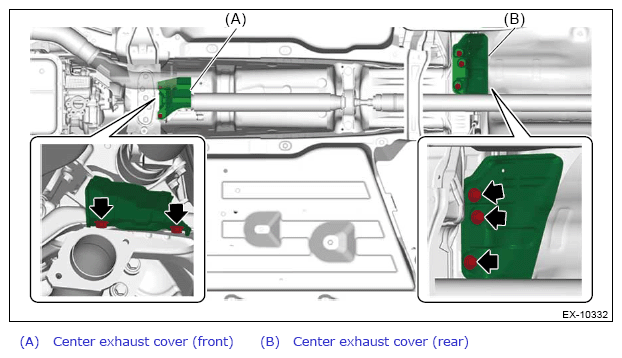

4. Remove the center exhaust cover.

NOTE: Remove if necessary.

Courtesy of SUBARU OF AMERICA, INC.
