Air Intake Boot: Installation

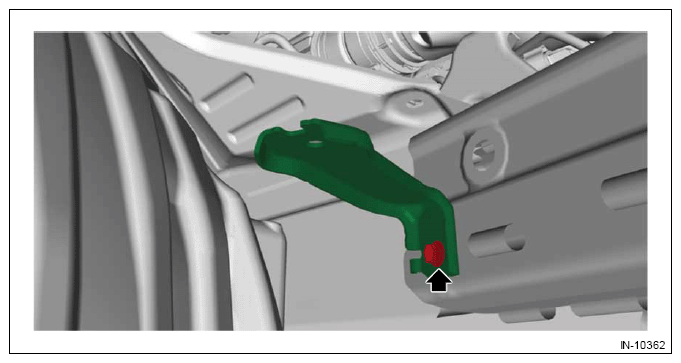

Install the turbo duct bracket.
NOTE: Align the protrusion with the rotation stopper hole.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

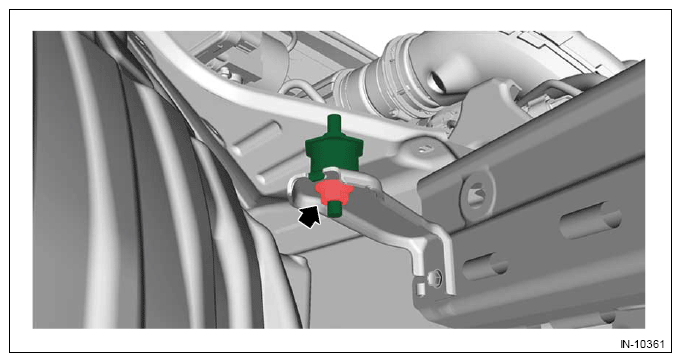

Install the cushion to the turbo duct bracket.
NOTE: Align the protrusion with the cutout portion.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the front mud guard RH clip.

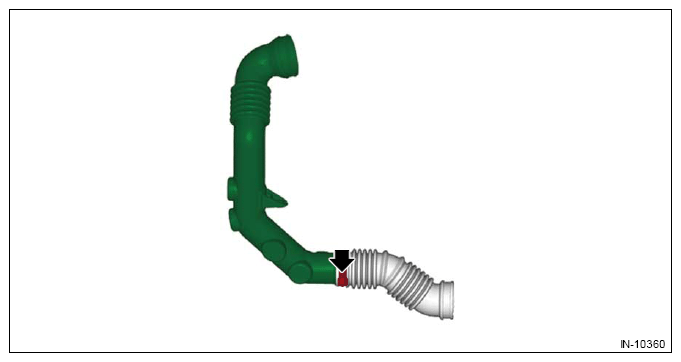

Connect the turbo duct and the air intake boot.
NOTE: Align the protrusion with the cutout portion.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

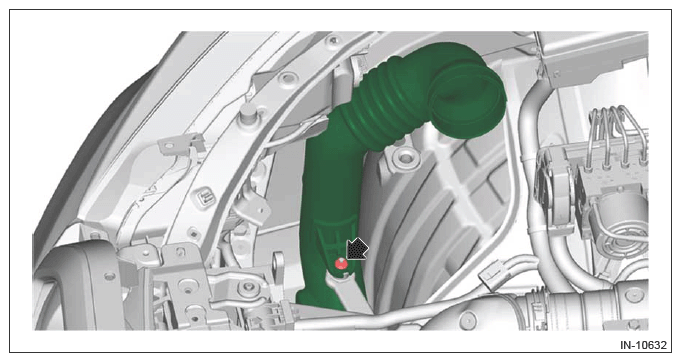

Set the turbo duct and the air intake boot from the upper side of the vehicle as one unit, and install the turbo duct to the turbo duct bracket.
NOTE: Align the protrusion with the cutout portion.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

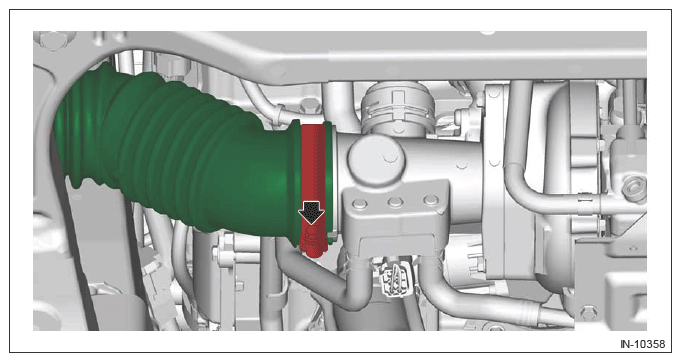

Connect the air intake boot to the intake duct No. 1.
NOTE: Align the protrusion with the cutout portion.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
Install the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Cleaner Case>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
