Air Intake Boot: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Cleaner Case>REMOVAL .
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  4. Disconnect the air intake boot from the intake duct No. 1.
    G13198576Courtesy of SUBARU OF AMERICA, INC.
  5. Remove turbo duct from the turbo duct bracket, and remove the turbo duct and the air intake boot from the upper side of the vehicle as one unit.
    G13862357Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the turbo duct and the air intake boot.
    G13198578Courtesy of SUBARU OF AMERICA, INC.

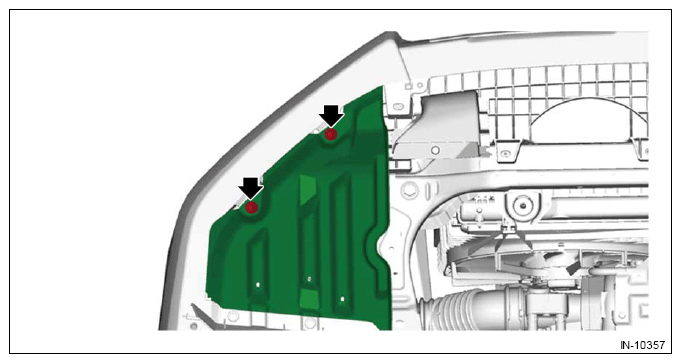

  7. Remove the clips and turn over the front mud guard RH.
    G13198579Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the cushion from the turbo duct bracket.
    G13198580Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the turbo duct bracket.
G13198581Courtesy of SUBARU OF AMERICA, INC.
