Cylinder Block 2

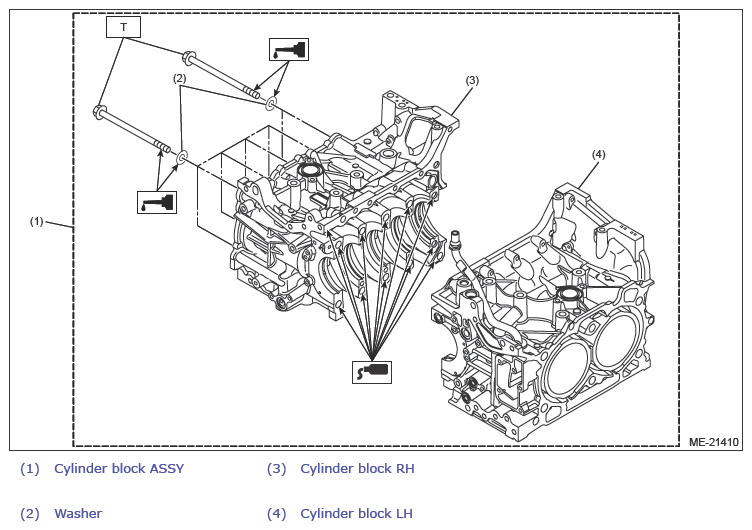

Fig 1: Exploded View Of Cylinder Block 2 Components

G13862416

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DOTC)>Cylinder Block>INSTALLATION .
